PRODUCT DESCRIPTION
With a Saunum AirIQ control unit, control of the Saunum Air electric sauna heater is easy and convenient. Three programmable sauna types let you heat the sauna with just a few taps on the screen. The AirIQ allows you to activate a tailored sauna profile and have your custom sauna ready at the time you specify on your mobile device. This improves your sauna experience and reduces energy consumption.

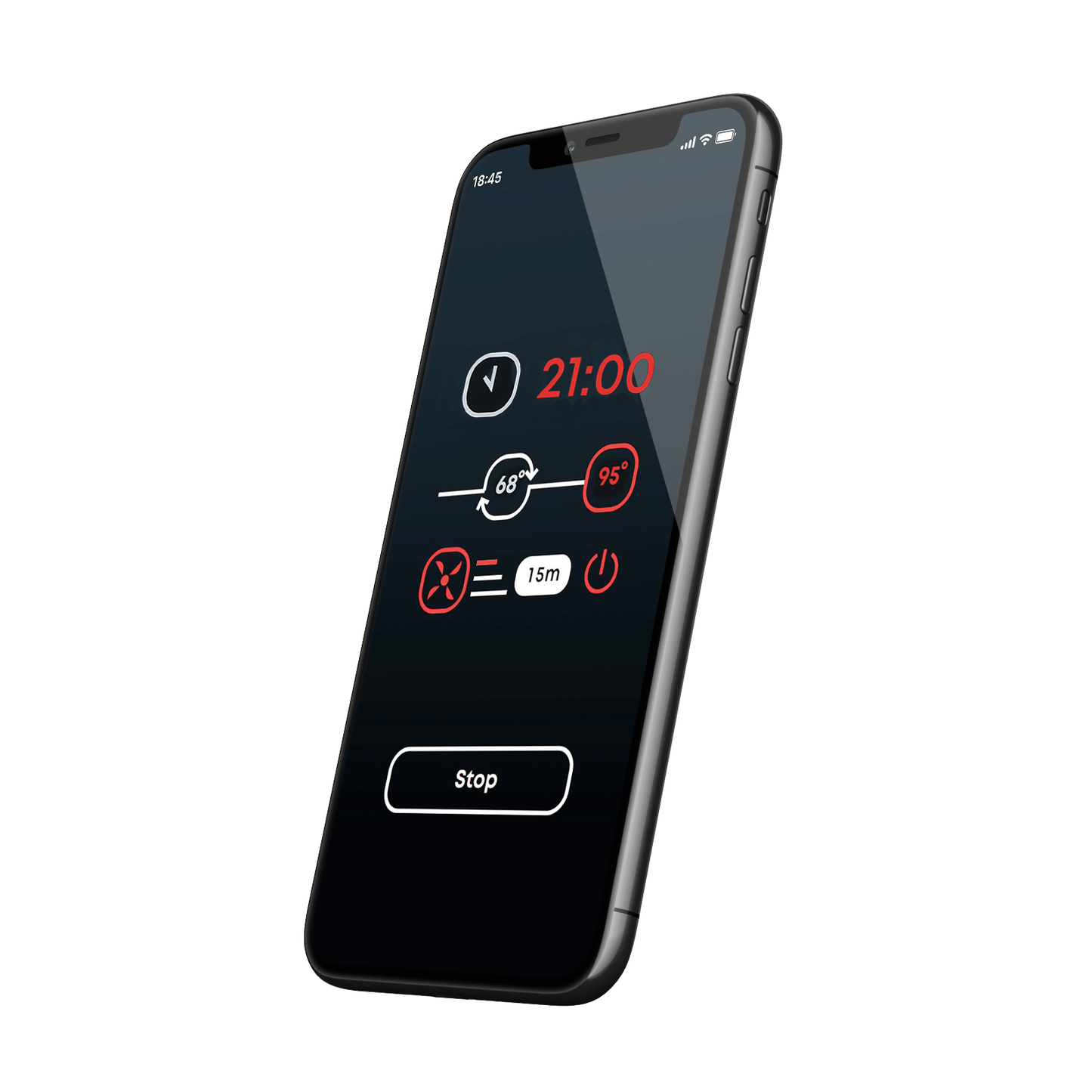

With the Saunum AirIQ Wi-Fi, you can control your sauna from anywhere, at any time. Simply pair the Saunum AirIQ app with the Saunum AirIQ Wi-Fi that is connected to a Wi-Fi network. Sauna notifications are displayed on the user's mobile device. The AirIQ is UL listed for safety.
- Temperature selection ranges from 104 °F – 194°F (40°C - 90°C).
- Allows you to set the operating time of the heater: up to 1 hour in a private sauna, up to 6 hours in a public sauna.
- Allows you to select up to 3 Preset Sauna settings: (selectable temperature, time, climate device speed)
- AirIQ WiFi allows for sauna session scheduling for a specific day, time, and sauna type for the week.
- Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play.
Features
Easily control the Saunum heater and climate device with just a few taps on the screen.
- Temperature selection ranges from 104 °F – 194°F (40°C - 90°C).
- Allows you to set the operating time of the heater: up to 1 hour in a private sauna, up to 6 hours in a public sauna.
- Allows you to select up to 3 Preset Sauna settings: (selectable temperature, time, climate device speed)
-
Classic Nordic Steam Sauna
- for temperatures from 140°F - 194°F (60°C - 90°C). Valve of the Climate Device open to 25% with speed level 1.
-
Humid Steam-rich Sauna
- for temperatures from 113°F - 140°F (45°C - 60°C). Valve of the Climate Device open to 100% with speed level 2 or 3.
-
Mild, Relaxing Sauna
- for temperatures from 104 °F – 131 °F (40°C - 55°C). Valve of the Climate Device open to 25% with speed level 1.
- AirIQ WiFi allows for sauna session scheduling for a specific day, time, and sauna type for the week.
- Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play.
- Notifications will be conveniently displayed directly onto your mobile device via the Saunum mobile app.
- Sauna is Ready
- Heating Status
- Door is Open
- Overheating protection applied.
- Multi-Language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian.
- Outside Sauna room installation
- Screen lock
- Child Safety Lock
- Temperature Sensor
- Door Sensor
Includes
- Soft-Touch Display Panel (Wi-Fi App-Based Updates & Operation)
- Wall Mounting Plate & Fasteners
- Power Unit
- Door Sensor Magnet
- Installation & Operation Manual
- Limited Warranty
Specifications
| Display Panel | |
|---|---|
| Model | AirIQ Wi-Fi |
| Certification/Global Safety Rating | UL (Underwriters Laboratories) |
| Type | Digital, Soft-Touch |
| Response | Tactile with Haptic Feedback Technology |
| Language Selection | 16-Languages |
| Wi-Fi Capability | Wi-Fi, App-Based Updates & Operation |
| Notifications | Sauna is Ready, Heater Status, Open Door, and Overheating Protection |
| Safety Features | Admin, Screen Lock, Door Sensor, and Overheat Protection |
| Color | Nordic Black |
| Heat Equalizing Control | 3-Speed Adjustability |
| Depth | .8" (20.32 mm) |
| Width | 3.3" (83.82 mm) |
| Height | 4.1" (104.14 mm) |
| IP Rating | IP20 |
| Minimum Temperature Setting | 104-Degrees Fahrenheit (40-Celcius) |
| Maximum Temperature Setting | 194-Degrees Fahrenheit (90-Celcius) |
| Duration Timer | 1 - 6 Hours |
| Display Panel Cable (included with heater) | 4-Conductor Cable (150-Degree C), 20AWG, 15' (475.2 cm) |
| Door Sensor & Cable Assembly (included with heater) | 2-Conductor Cable (150-Degree C), 20AWG, 9.83' (299.62 cm) |
| Door Sensor Probe | 1" Long and .24" Diameter (25 x 6 mm) |
| Operating Temperature Range | -4 - 145-Degrees Fahrenheit (-20 - 62 Celsius) |
| Programmability | Weekly Scheduling with Three Programmable Sessions |
| Temperature Settings | Fahrenheit or Celsius |
| Region Settings | North American and European Versions |
| Room Temperature Sensor (included with heater) | Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm) |
| Power Unit | |
|---|---|
| Certification/Global Safety Rating | UL (Underwriters Laboratories) |
| Operating Voltage | 240VAC 1 Phase |
| IP Rating | IP64 |
| Depth | 2.36" (59.94 mm) |
| Width | 6.5" (165.5 mm) |
| Length | 10.11" (256.79 mm) |
| Operating Temperature | -4 - 113-Degrees Fahrenheit (-20 - 45-Celcius) |
