Saunum AIR 7 Sauna Heater
SKU:
- Regular price
- Price: $3,195.00
- Regular price
- List Price:
- Sale price
- Price: $3,195.00
- Unit price
- per
FREE SHIPPING | Offer valid through:
Couldn't load pickup availability
Share
Authorized Dealer
PRODUCT DESCRIPTION

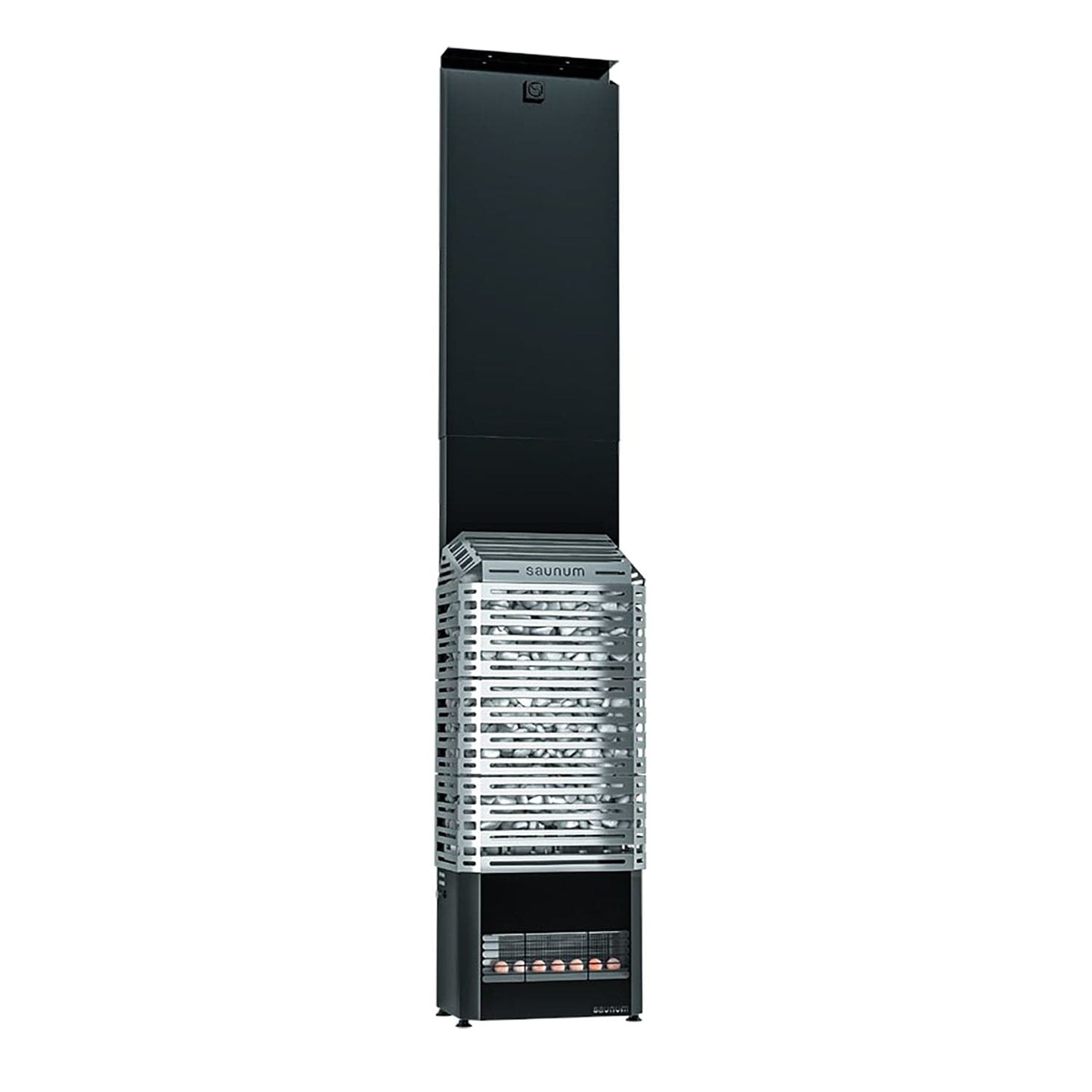

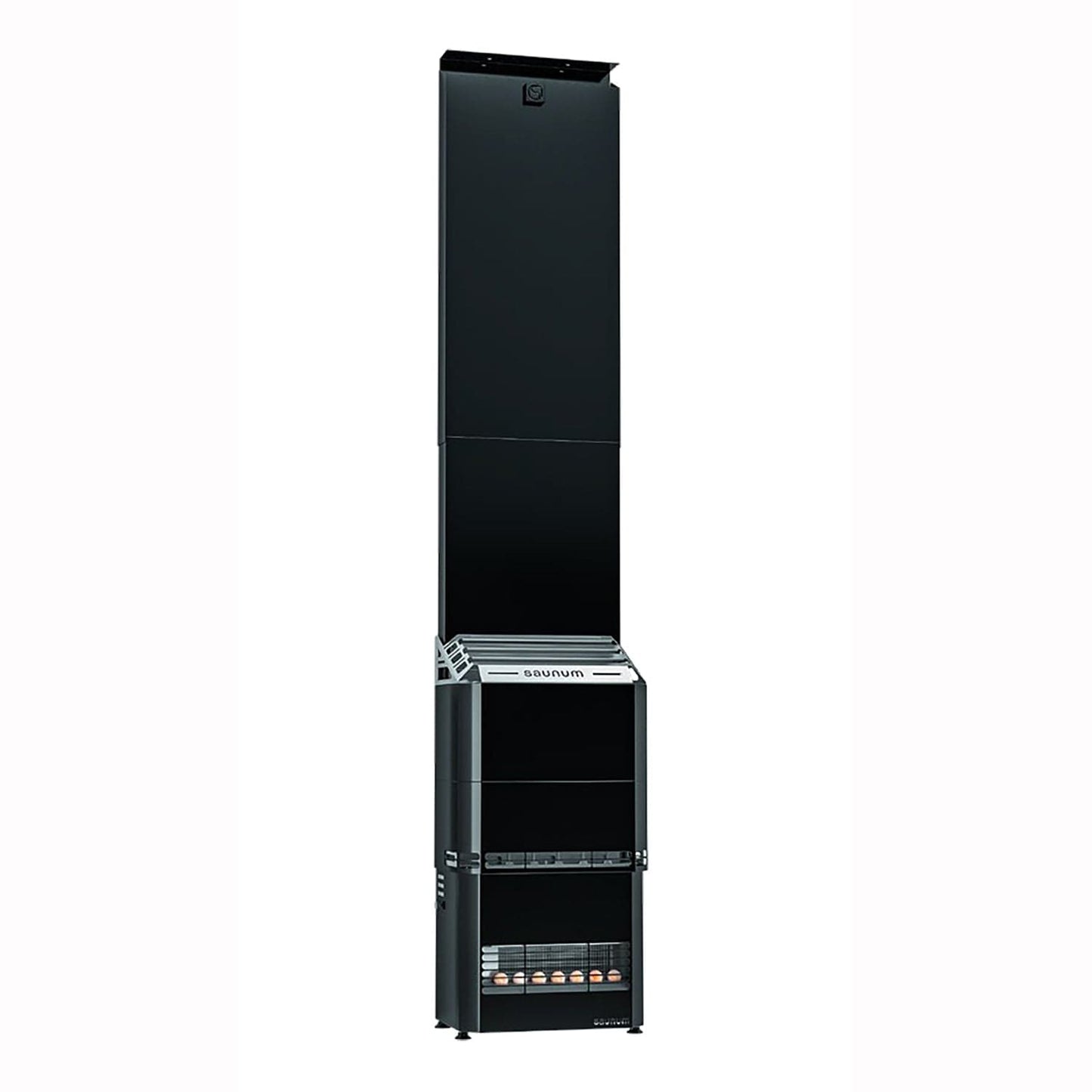

Air Series, 6.4kW Sauna Heater w/Climate Equalizer, Black
Model: AIR 7
SKU: 4745090017847

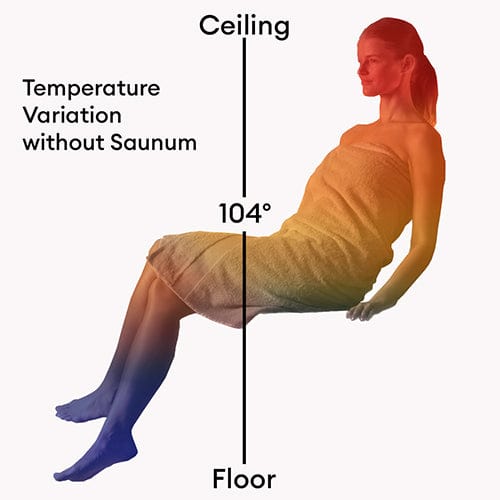

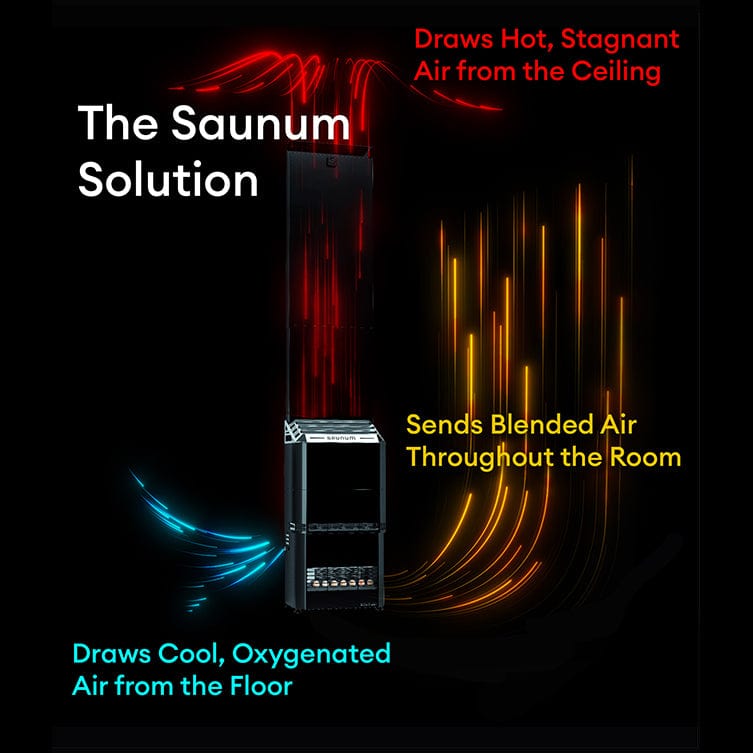

- Air Mixing Technology – Saunum patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot, or just warm, Saunum delivers both in a way that heat and oxygen is felt head to toe.
- European Design – With elegant black steel finish, Saunum combines Scandinavian design and quality materials. Select the the simple elegance of the Nordic black steel body, or open stainless steel basket for a glowing organic aesthetic.
- Massive Stone Capacity – Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat, and can produce more luxurious steam. Large 154 pound stone capacity (required 5 boxes sold separately)
- Himalayan Salt Reservoir – Saunum’s Himalayan salt tray is positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits more effectively.

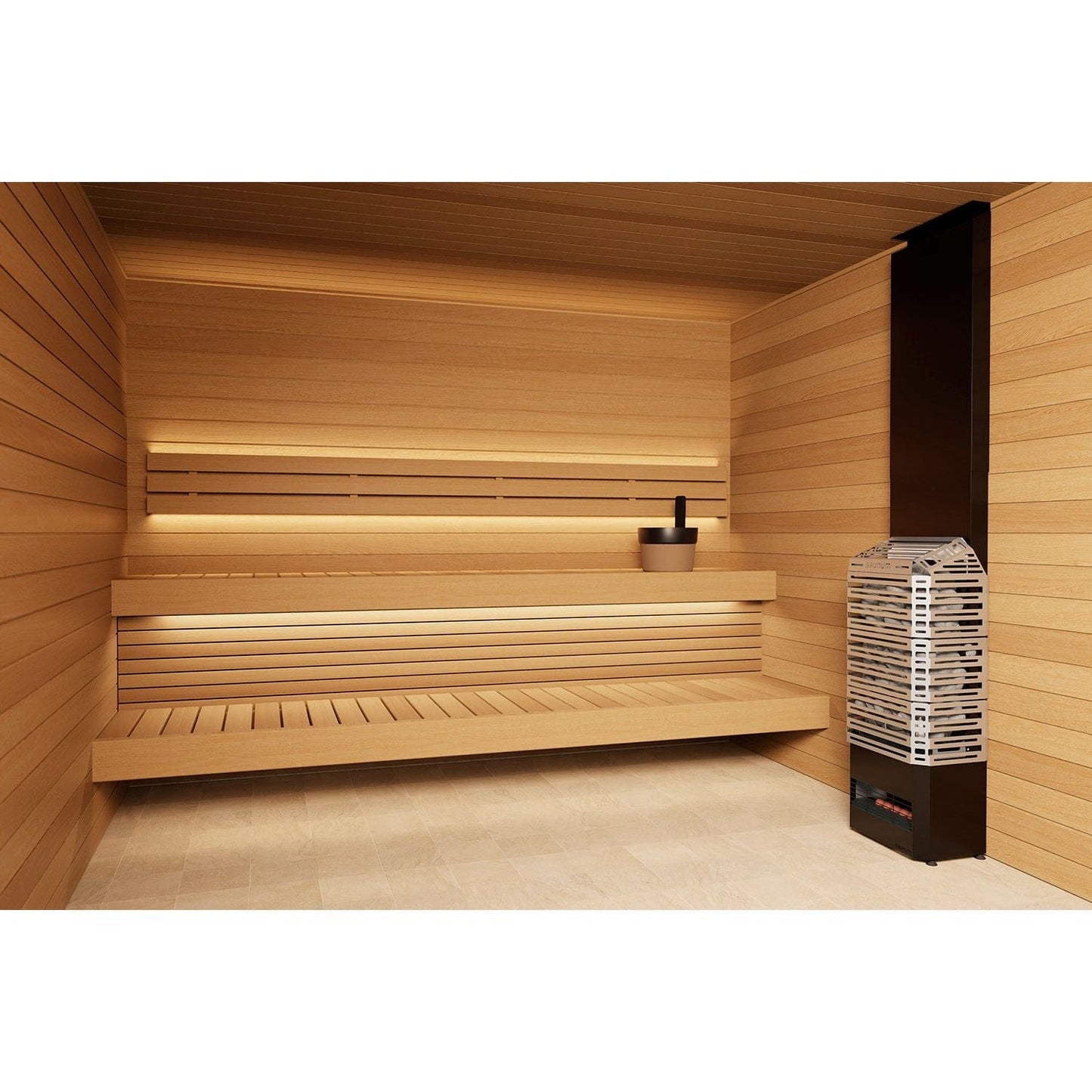

- For Sauna rooms from 177 to 247 cu. ft.
- UL-listed for safety.
Includes

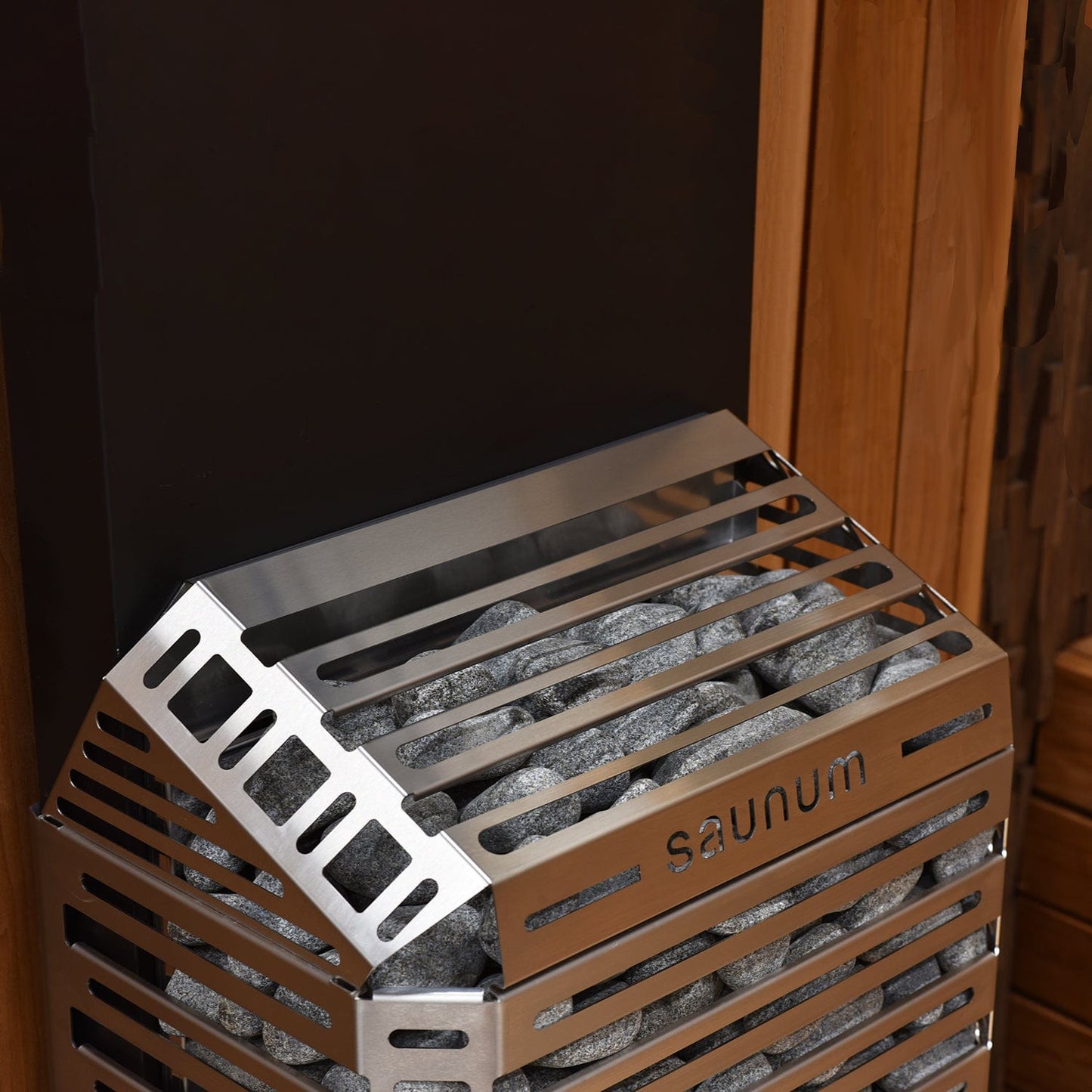

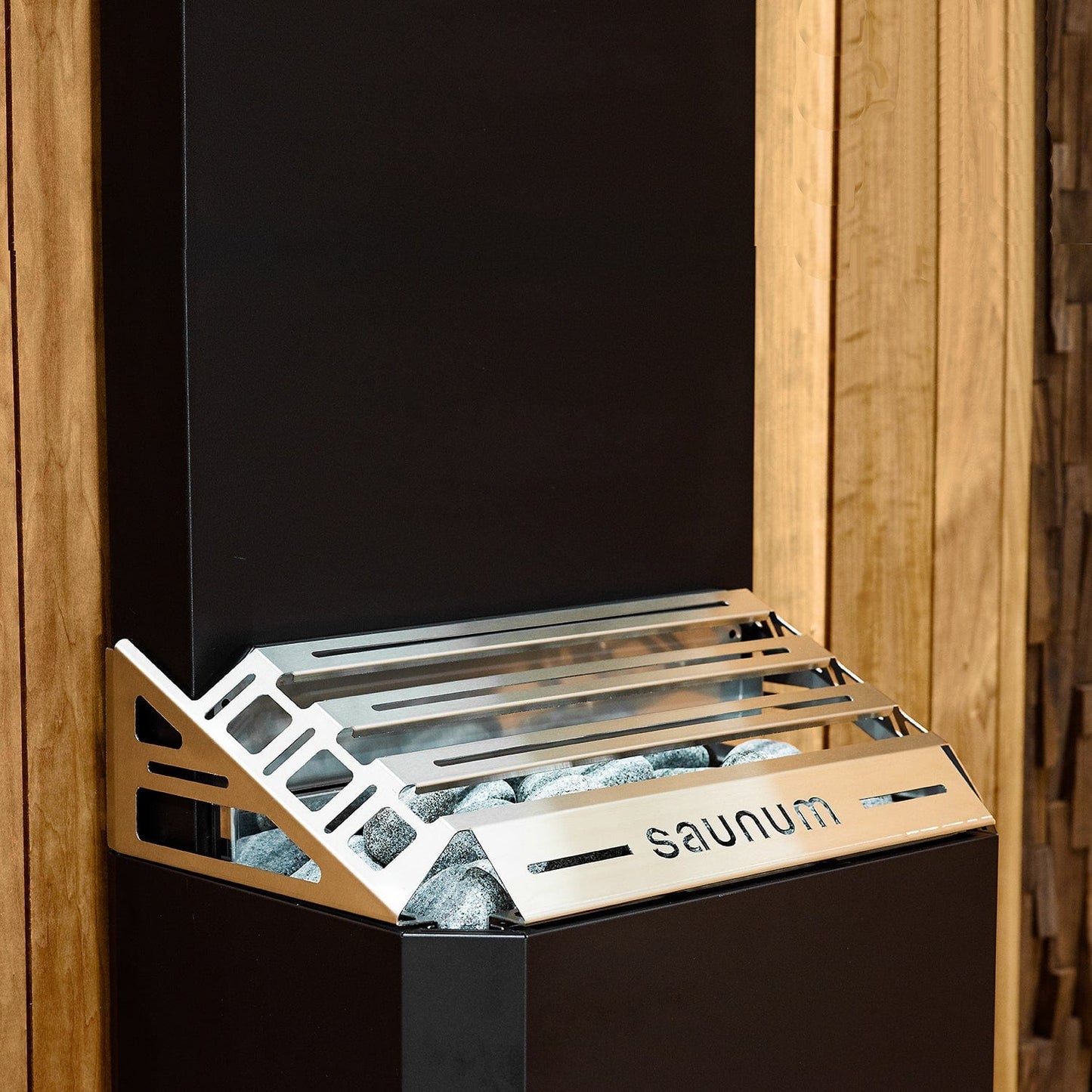

- Stainless Steel Stone Basket
- Heat Equalizing Module
- Telescopic Hot Air Intake
- Heating Element Air Tunnels (3)
- Himalayan Salt Spheres (7)
- Hot Air Intake Cap

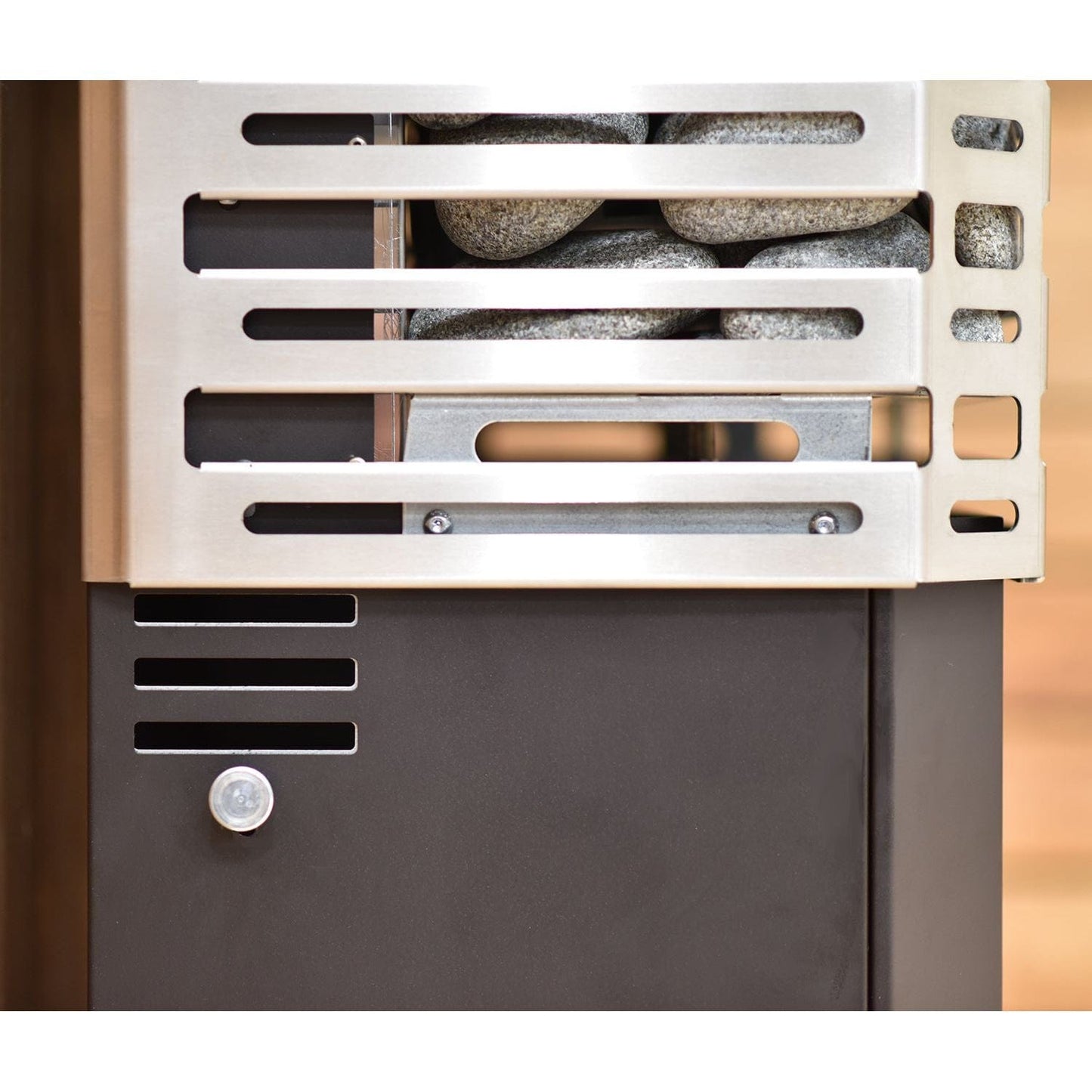

- Stainless Steel Protective Grille
- Heating Element Electrical Cable, 5' (152.4 cm)
- Heat Equalizer Electrical Cable, 5' (152.4 cm)
- Room Temperature Sensor & Cable, 9.5' (289.56 cm)
- Door Sensor & Cable Assembly, 9.83' (299.62 cm)
- IQAir Display Panel Cable, 16' (487.68 cm)
- Quick Install Guide
- Installation & Operation Manual
- Limited Warranty
Specifications
| Heat Equalizing System | |
|---|---|
| Model | Air 7 |
| Certification/Global Safety Rating | UL (Underwriters Laboratories) |
| Heat/Steam Equalizer Module | 3-Speeds, Whisper-Quiet Operation |
| Ceiling Hot Air Intake | 17.72" x 4" ( 450.09 x 101.6 mm) |

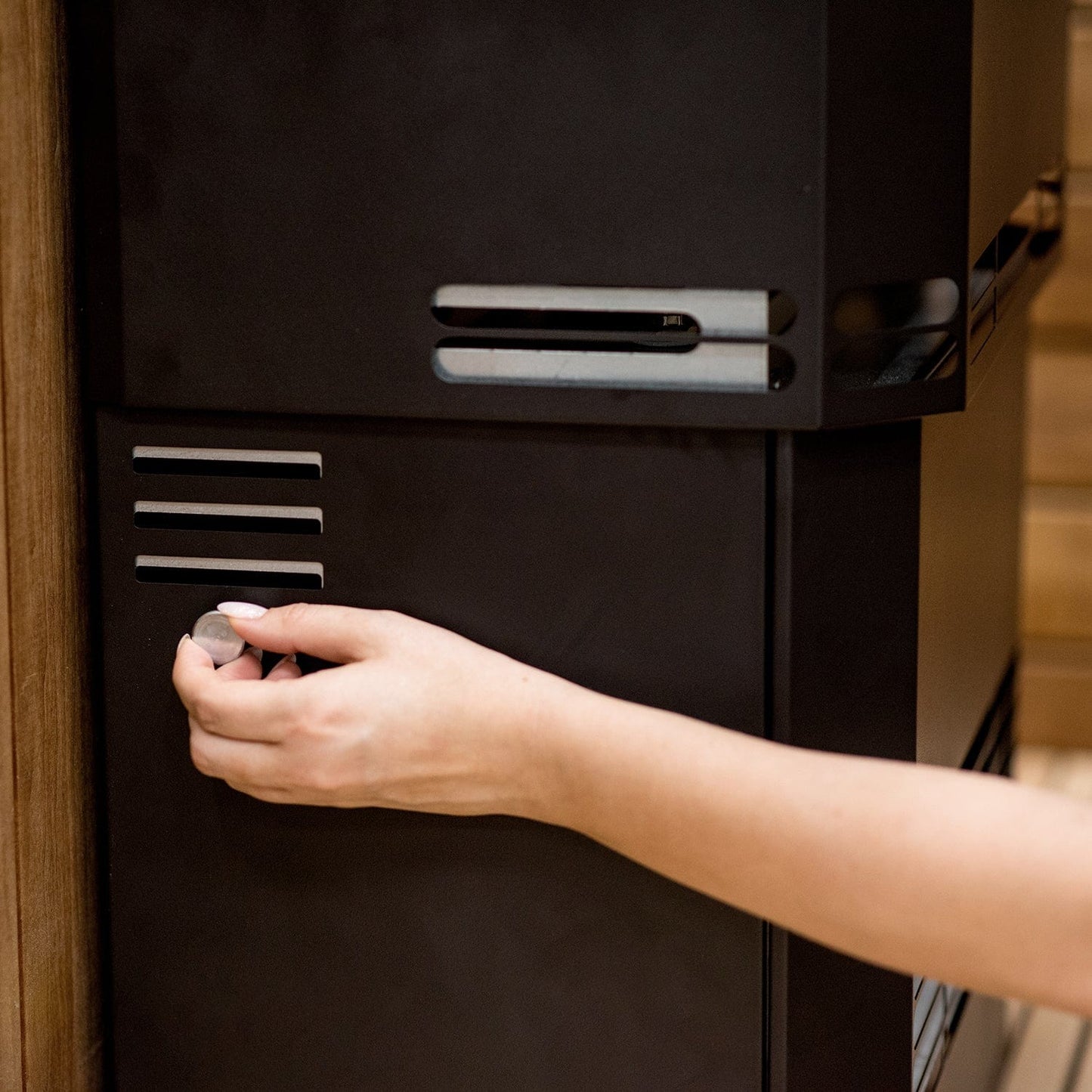

| Cool Air Intake Type | Adjustable Valve, Side-Mounted, 12" (304.8 mm) Off Floor |
| Cool Air Intake Size | 2" x 2.75" (50.8 x 69.85 mm) |
| Blended Air Output | 4.31" x 14.13" (109.47 x 358.90 mm) |
| Himalayan Salt & Aroma Tray Type | Removable, Slotted |
| Himalayan Salt & Aroma Tray Size | 16.5" x 4.5" (419.1 x 111.76 mm) |
| Sauna Heater System | |
|---|---|
| Model | Air 7 |
| Certification/Global Safety Rating | UL (Underwriters Laboratories) |
| Heater Body Style | Stainless Steel or Black |
| Heating Elements | Incoloy (Stainless Steel) |
| Heating Element Protection (included) | Air Tunnels, Slotted Stainless Steel, Three |
| Room Size | 212 - 282 (6-8 Cubic Meters) |
| Wattage Rating | 6400 |
| Operating Voltage | 240 VAC |
| Phase | Single |
| Amperage | 26.67 |
| Weight | 106 lbs (48 kg) |
| Shipping Weight with Stones | 300 lbs (136 kg) |
| Product Depth | 12.41" (315.3 mm) |
| Product Width | 18.31" (465 mm) |
| Product Height (including telescopic air intake) | 71.48 - 94.49" (1815.6-2400.05 mm) |
| Minimum Ceiling Height | 71.48" (1815.6 mm) |
| Stone Capacity | 132 - 154 lbs (60-70 kg) |
| Stone Size (sold separately) | 2" - 4" (5-10 cm) |
| Circuit Breaker | 40 Amp |
| Wire Size to Power Unit | (2) #8 + N + G |
| Wire Size - Power Unit to Elements (Included) | 7-Conductor Cable, #14AWG , 90-Degree C, 5' (152.4 cm) |
| Wire Size - Power Unit to Heat Equalizer (Included) | 5-Conductor Cable, #18AWG, 90-Degree C, 5' (152.4 cm) |
| Room Temperature Sensor | Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm) |
