HUUM

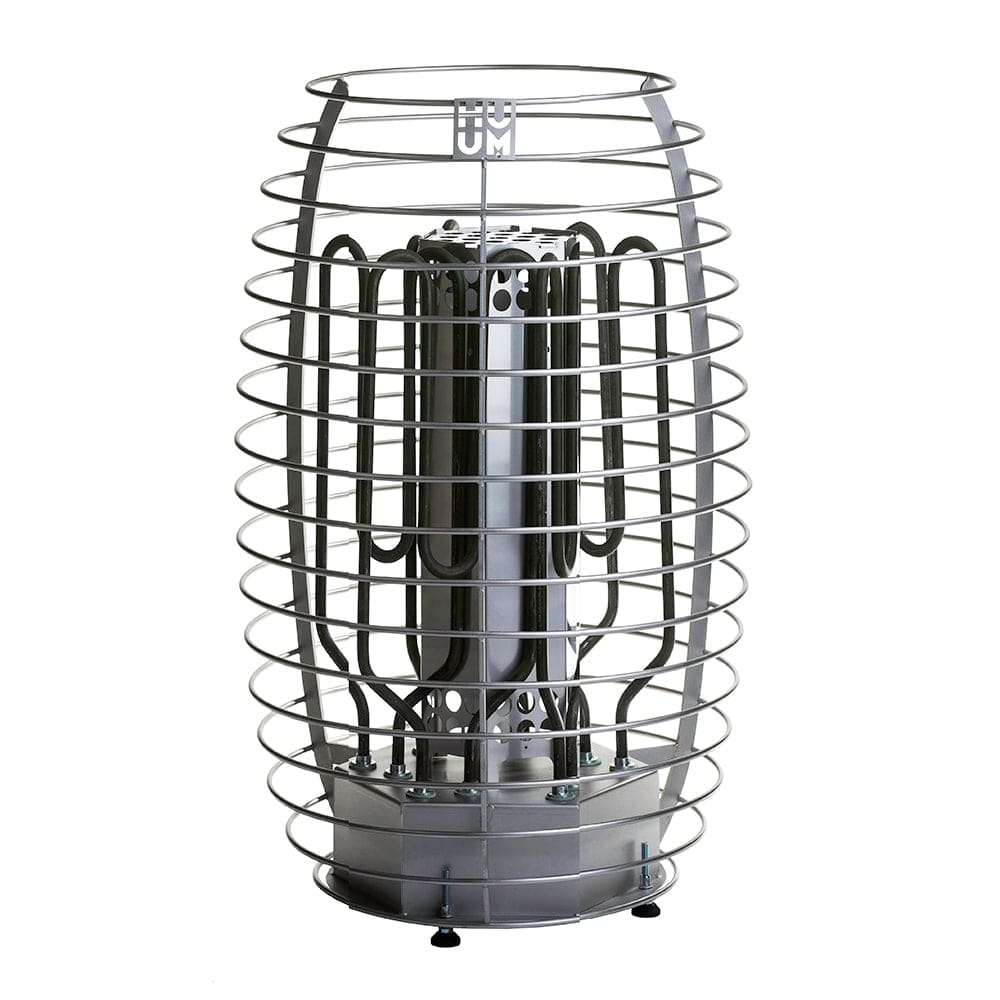

HUUM HIVE Mini 11

SKU:

Regular price
Price: $2,143.00
Regular price
List Price: $2,343.00
Sale price
Price: $2,143.00
You save: $200.00 (9%)
FREE SHIPPING | Offer valid through:
View Cart

Authorized Dealer

HIVE Mini Series 10.5kW Sauna Heater
Model:  Hive Mini 10.5
SKU:  H10022003
UPC:  4745090271102

The HIVE Mini 10.5kW sauna heater is a slimmer version of the robust HIVE heater. The HIVE Mini fits up to 330lbs of sauna stones (265lbs with HIVE air tunnel) and is designed for cozy sauna spaces up to 706 cubic feet (CF).

The WiFi compatible HUUM HIVE Mini 10.5 is a floor-mounted 10.5-kilowatt electric sauna heater designed for sauna rooms from 353 to 706 cubic feet.

The HIVE Mini 10.5 generates a soft, high heat and provides a superior sauna experience. Its elegant design enhances the design of any sauna interior. The sauna unit is crafted of high-grade stainless steel and includes professional-quality heating elements.

The HIVE Mini 10.5 combines modern design and craftsmanship with innovative features. The sauna unit is engineered so that the sauna rocks are in direct contact with the heating elements for a more efficient transference of heat. It has a large 330-pound stone capacity to radiate a much more consistent heat.

The HUUM HIVE Mini 10.5kW floor-standing heater operates in 240V, single-phase (1PH).

HUUM HIVE Mini Series heaters are precision-crafted in Estonia to provide years of dependable operation. HUUM HIVE Heaters are SGS Listed to ensure quality and safety.

The HIVE Mini 10.5 sauna unit requires an UKU or UKU WiFi control and UKU extension box for operation. Select the control with the color and features that best suit your preferences. The available HUUM UKU mobile app lets you preset WiFi-equipped saunas from anywhere using your smartphone for the ultimate convenience.

The Mini 10.5 sauna heating unit carries HUUM's limited 5-year warranty and is fully serviceable.

Required control, extension box and sauna stones (10 boxes) are sold separately - see Required Control and Stones tab.

Features

  • Elegant design
  • 240V/1PH operation
  • For sauna rooms from 353 to 706 cu. ft.
  • Works with UKU controls (sold separately)
  • 330 pound stone capacity (required 10 boxes sold separately)
  • Direct contact between stones and heating elements
  • More exposed stones create a longer and milder heat
  • Stainless steel construction
  • Stainless steel, industrial-quality heating elements​
  • Floor model with adjustable legs
  • Air tunnel shortens heat-up time and increases life of heating elements
  • Designed, engineered, and made in Estonia
  • Dimensions: 18.1"Diameter (460mm) x 29.5"H (750mm)
  • SGS listed
  • Limited 5-year warranty (excluding elements)

Includes

  • 10.5kW Sauna heater
  • Adjustable legs
  • Installation and Operation manual
  • 5-Year limited warranty (excluding elements)

Specifications

Model Hive Mini 10.5
Kilowatt Rating 10.5kW
Minimum Cubic Feet 353 CF
Maximum Cubic Feet 706 CF
Heater Weight 35.3 lbs
Shipping Weight with Sauna Stones 365.3 lbs
240V, Single Phase Amperage 43.75 Amps
Circuit Breaker 50
Wire Size AWG 8
Diameter 18.1" (460mm)
Height 29.5" (750mm)

Required Control & Stones

HUUM UKU Local or WiFi Remote

HUUM Stones 24 (10 boxes)

Accessories

HUUM HIVE Mini Rail

HUUM Flange HIVE Mini

HUUM Reflect HIVE Mini

Universal Sauna Light Kit with Two 10-Ft Flexible LED Strips

Universal Sauna Light Kit with 16-Ft Flexible LED Strip

Operation Manuals & Warranty

HUUM Hive Sauna Heater

Spec Sheet

HUUM Elements Required

Stone Requirements

Warranty

Certificate of Compliance
