HUUM HIVE 12 Package

SKU:

Regular price
Price: $4,363.00
Regular price
List Price:
Sale price
Price: $4,363.00
FREE SHIPPING | Offer valid through:
UKU Local or UKU WiFi
View Cart

Authorized Dealer

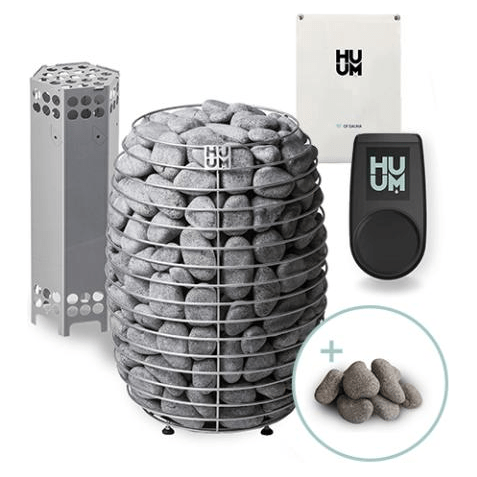

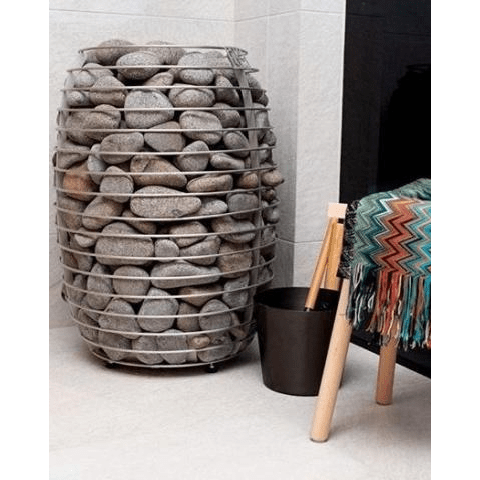

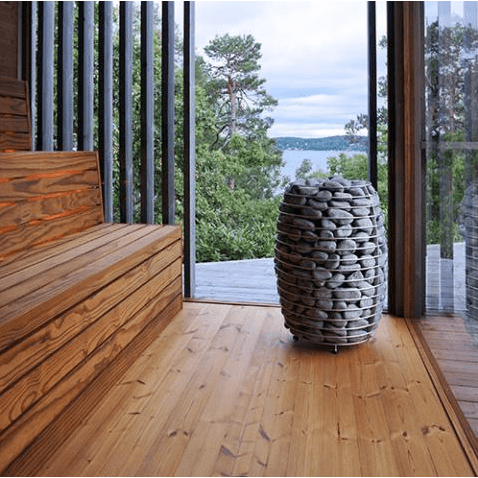

The HUUM HIVE series 12STUX Pkg 12.0kW sauna heater package features all the necessities to give your sauna space a touch of modern elegance. This all-inclusive package features UKU control, UKU Extension box, and sauna stones for a long-lasting steam engineered for spaces up to 880 cubic feet (CF).

Features

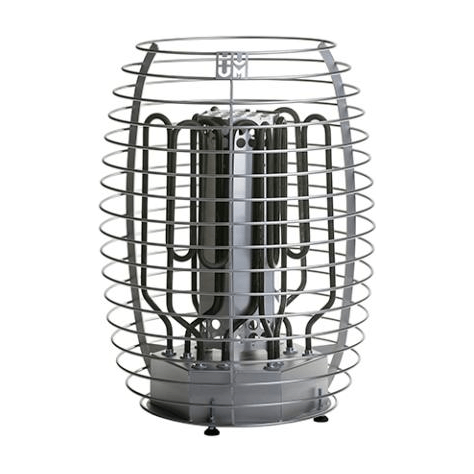

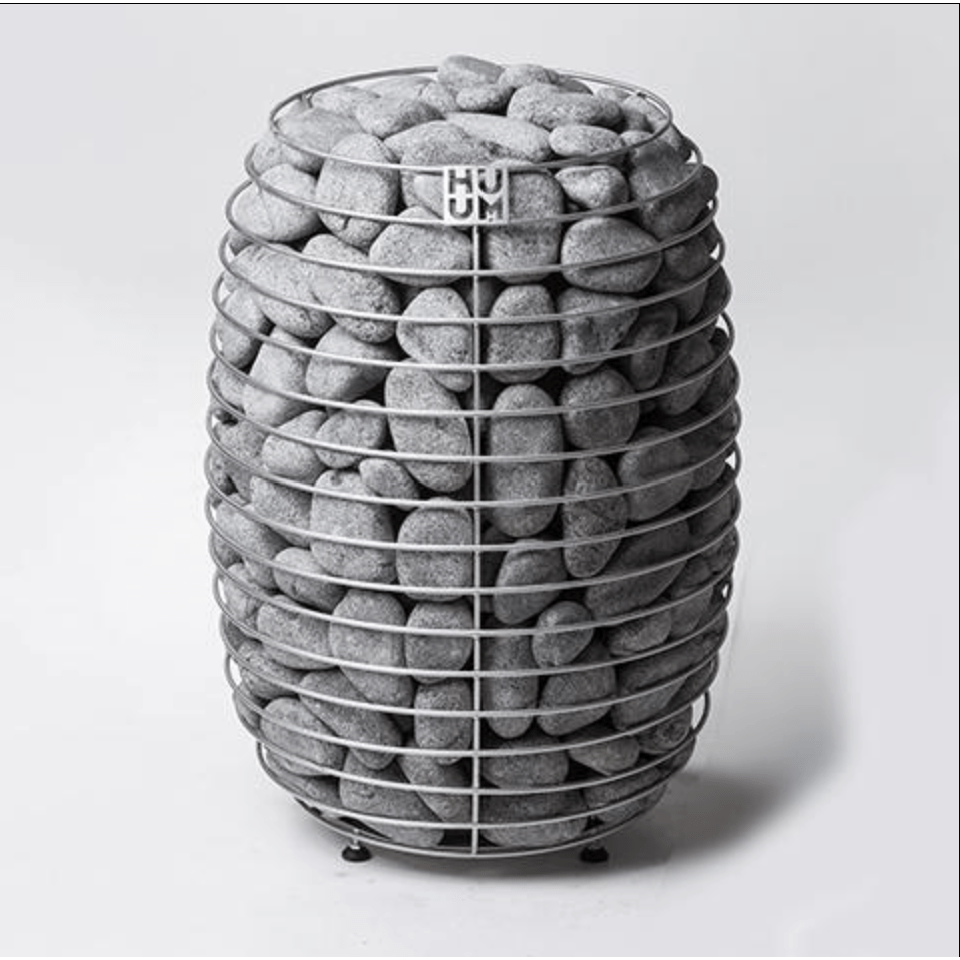

HIVE Series 12.0kW Sauna Heater

  • Elegant design
  • Suitable for commercial use
  • 240V/1PH operation
  • For sauna rooms from 424 to 883 cu. ft.
  • Works with UKU controls (sold separately)
  • Works with UKU extension box (sold separately)
  • Large 552-pound stone capacity (sold separately, Requires 17 boxes) or 463lbs with use of HIVE air tunnel

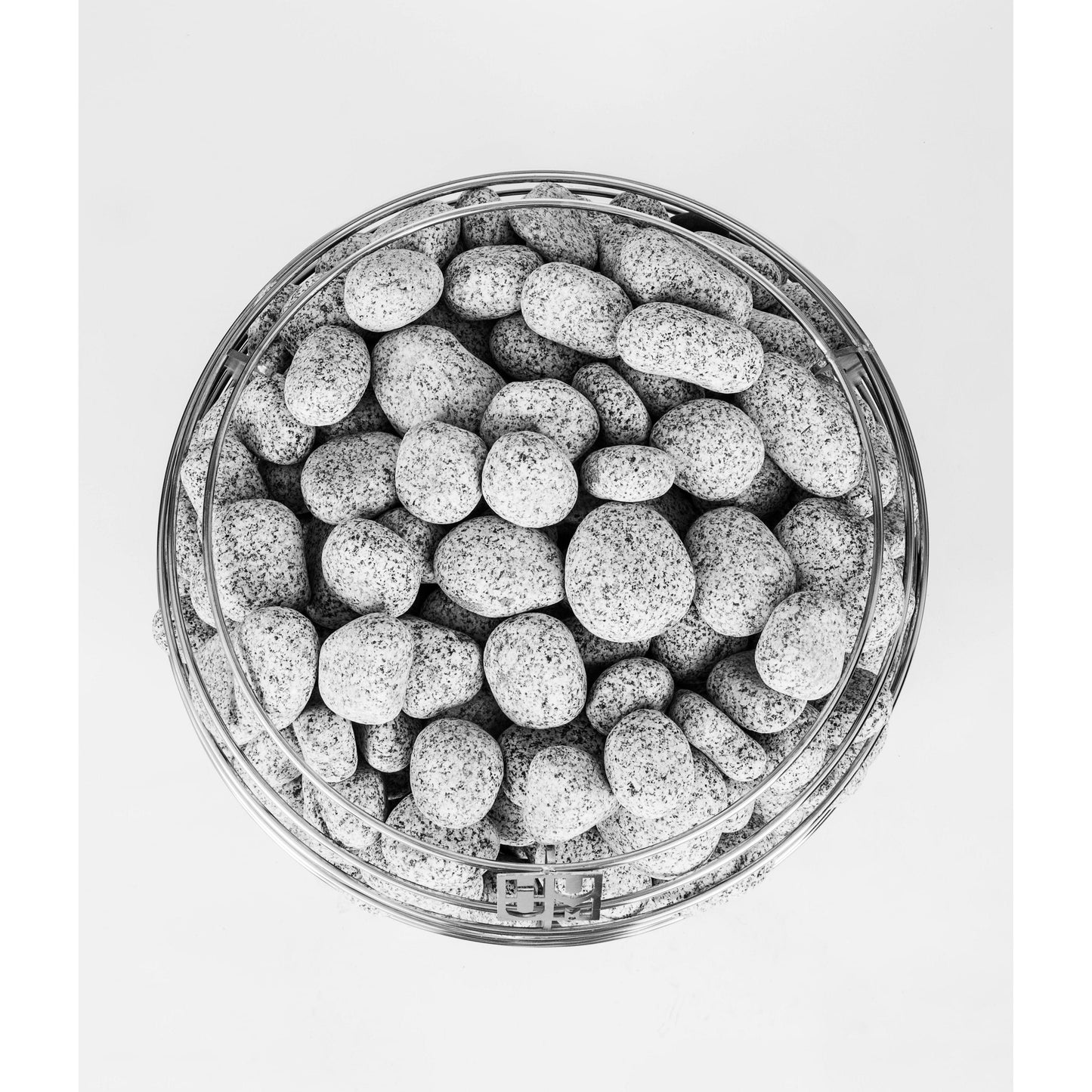

  • Direct contact between stones and heating elements
  • More exposed stones create a longer and milder heat
  • Stainless steel construction
  • Stainless steel, industrial quality heating elements​
  • Floor model with adjustable legs
  • Designed, engineered, and made in Estonia
  • Dimensions: 22" Diameter (560mm) x 29.5" H (750mm)
  • SGS Listed
  • Limited 5-year warranty (excluding elements)3

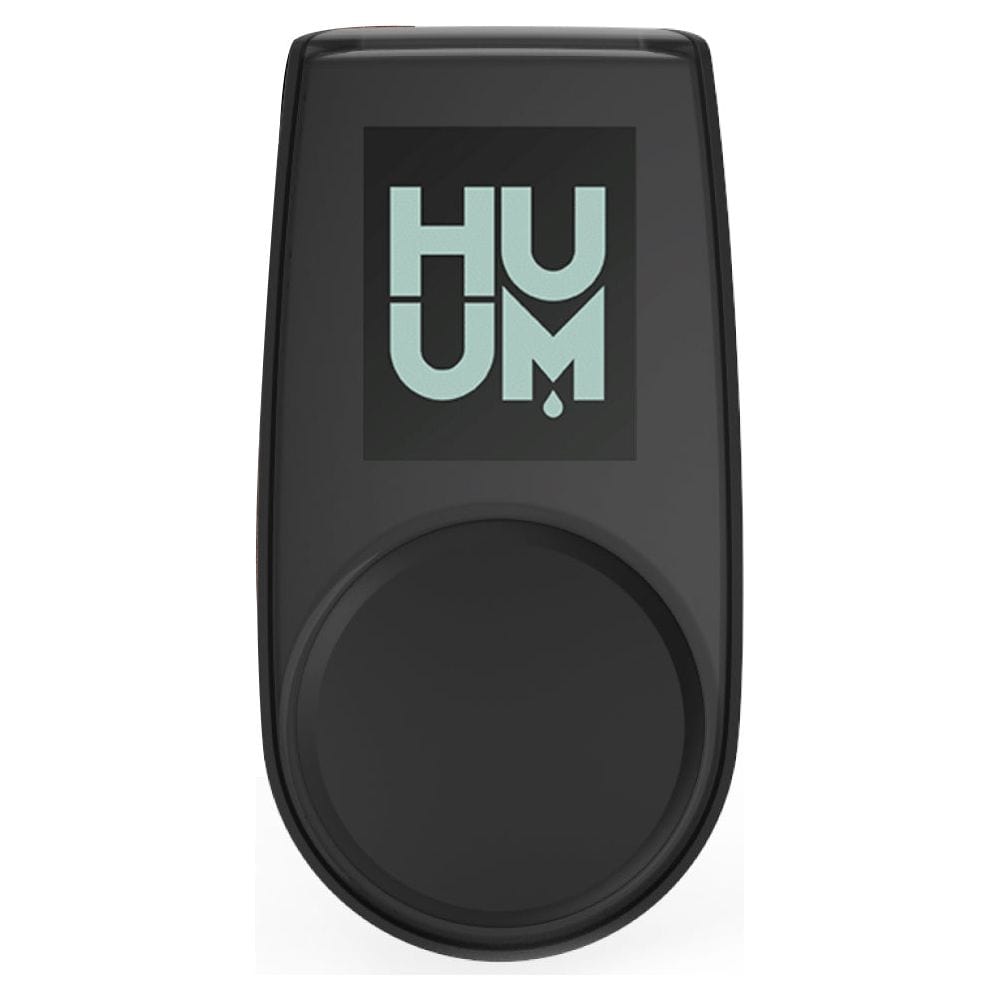

UKU

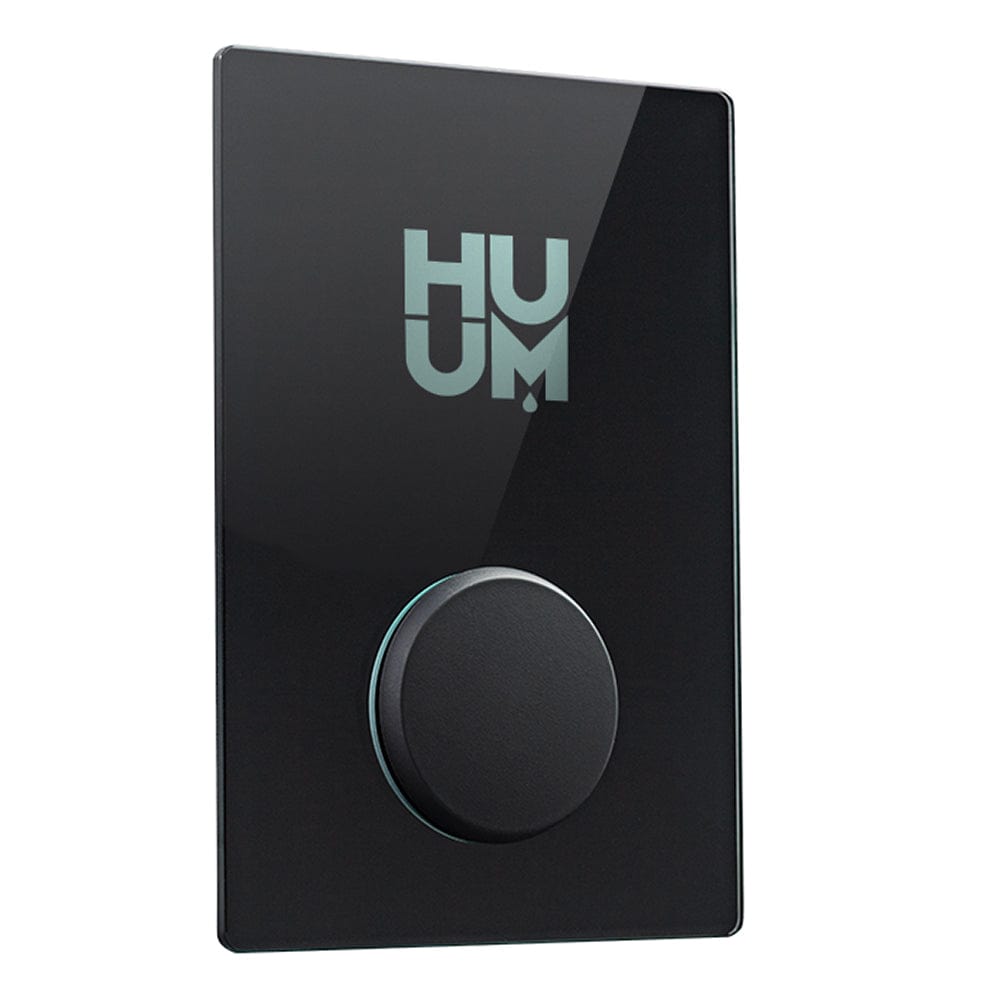

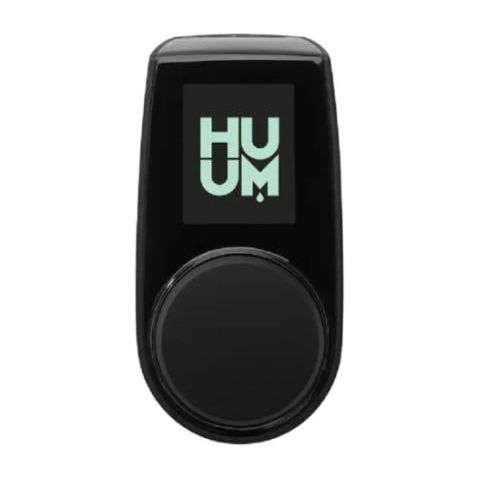

  • Sleek Black control display panel

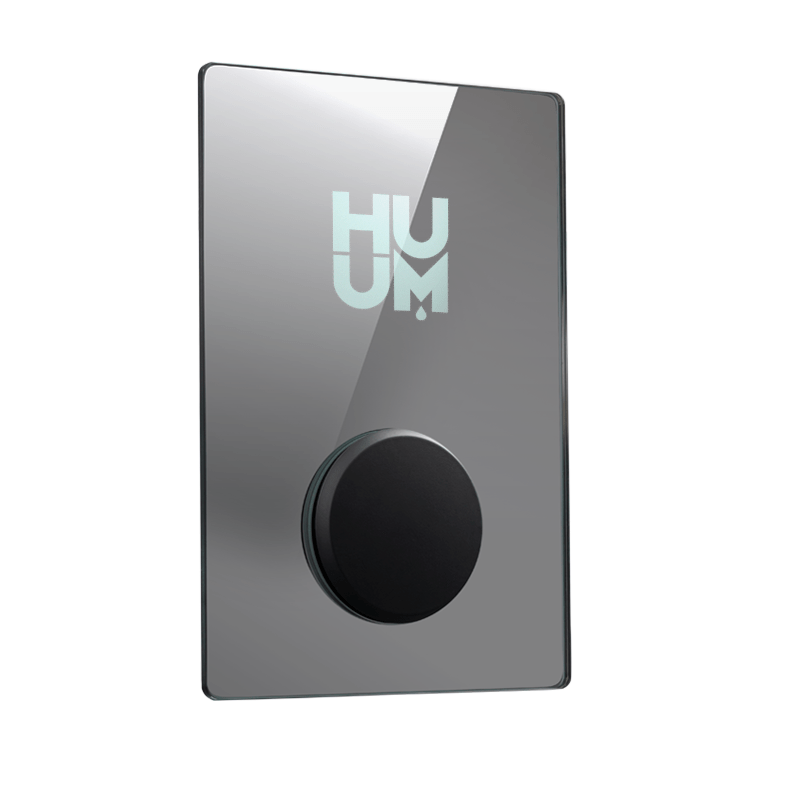

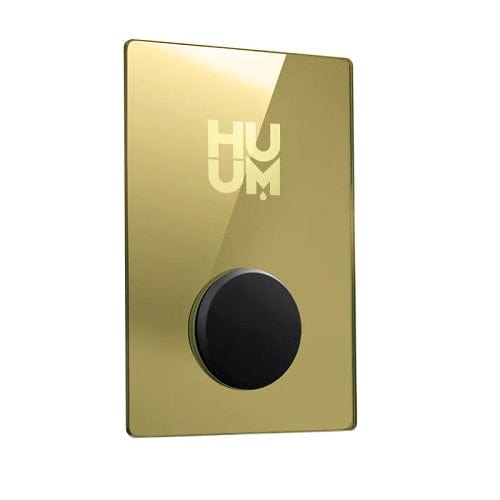

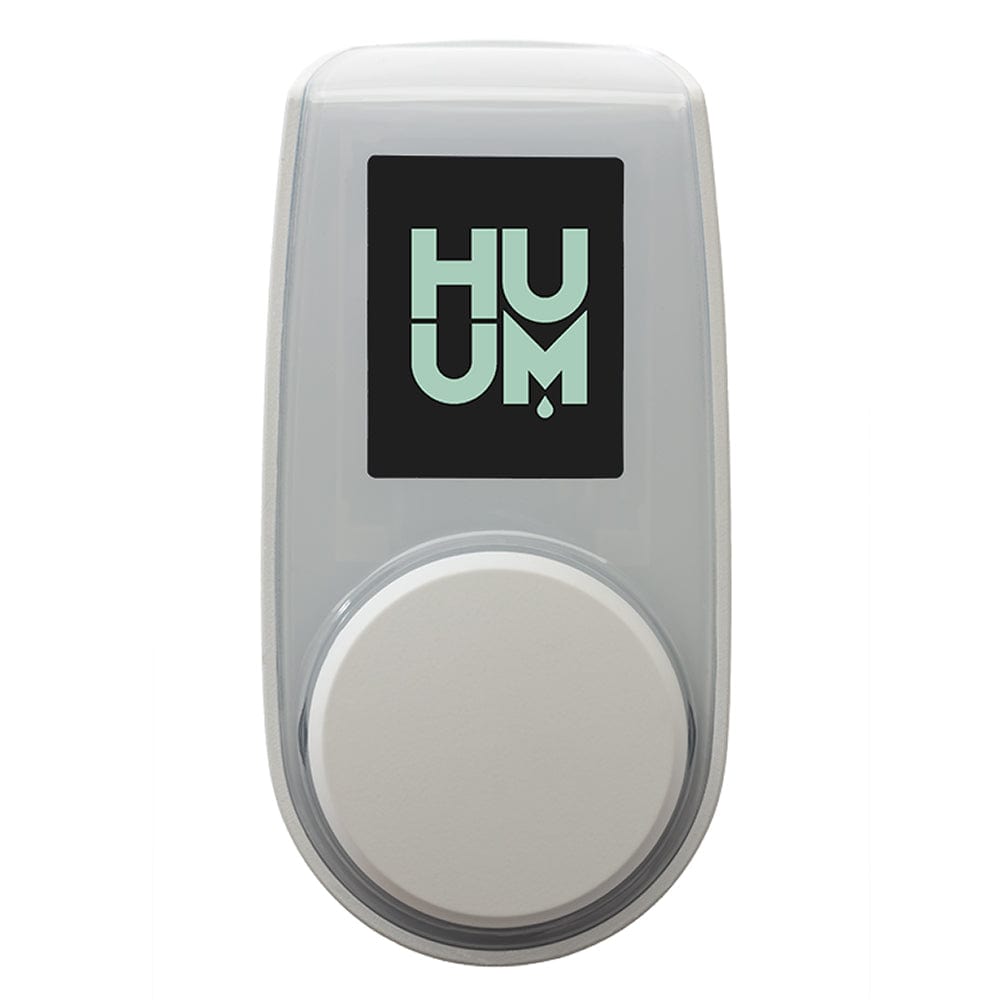

  • Multiple Color Options available (additional charges apply)
  • Settable on/off, time, temperature, and delay
  • Settable temperature range of 104-230F
  • Delayed start up to 48hrs in advance

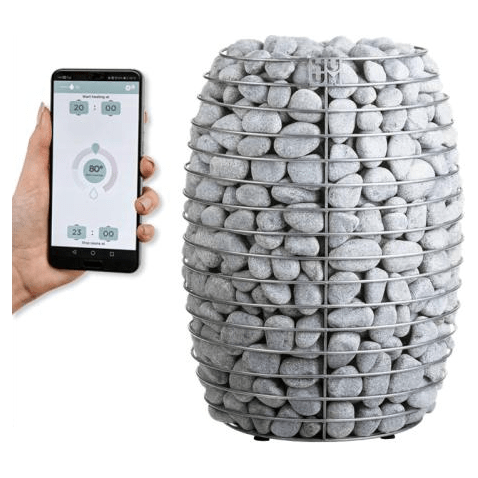

  • Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
  • 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
  • Inside/outside sauna room installation
  • Optional smart heating setting

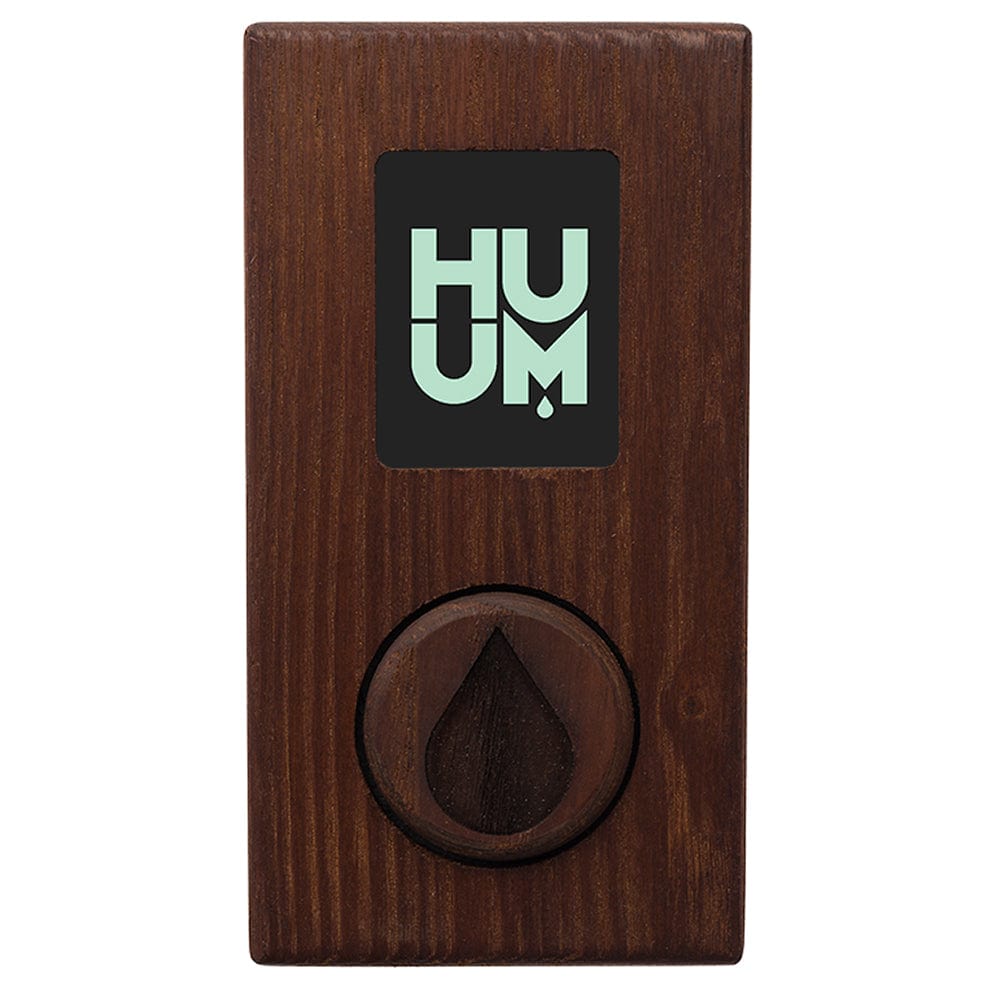

  • Available decorative control display panels
  • Displays set temperature and room temperature
  • Temperature sensor
  • Door sensor to keep the heat inside the room
  • Remotely located main control module
  • Connects to lights and ventilation
  • Overheat protection
  • Child safety lock
  • Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
  • Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)

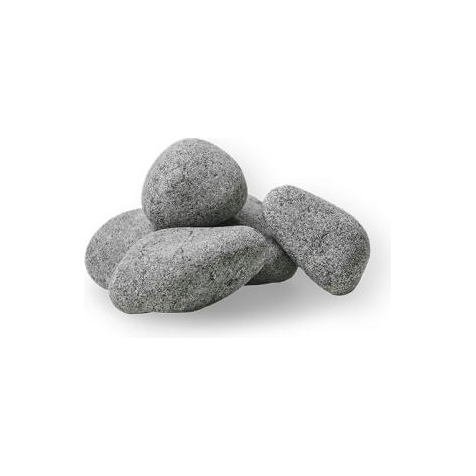

Stones 24

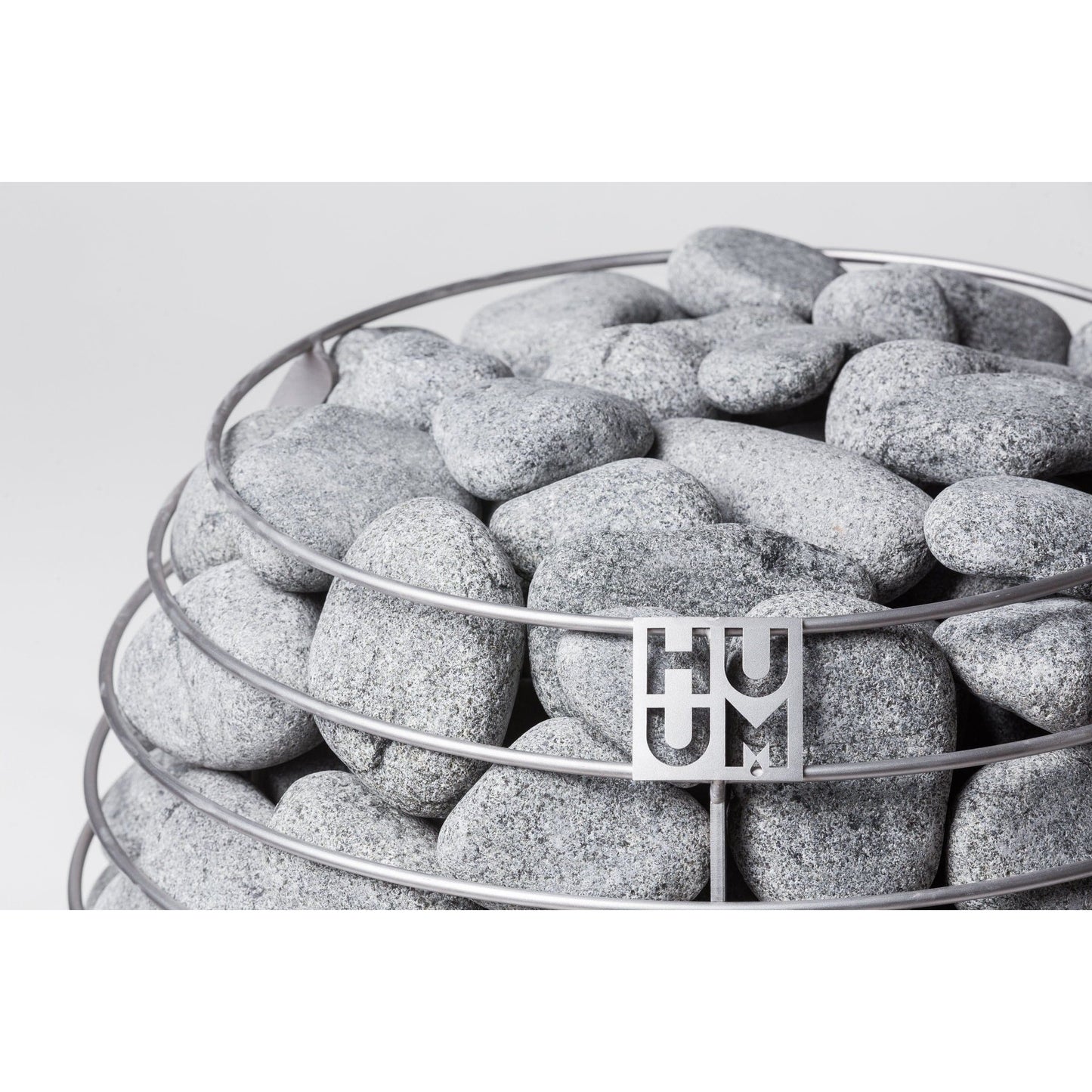

  • Olivine diabase sauna stones
  • Rounded shape to complement heater design
  • Durable with high-heat capacity
  • Stones range from 2" to 4" (5-10 cm)

Includes

HIVE Series 12.0kW Sauna Heater

  • 12.0kW Sauna heater
  • Adjustable legs
  • Installation and operation manual
  • Limited 5-year warranty (excluding elements)

UKU

  • Black Control console
  • Main control module
  • Temperature sensor
  • Door sensor
  • Control display panel cable
  • Temperature sensor cable
  • Door sensor cable
  • Installation and operation manual
  • 5-Year limited warranty

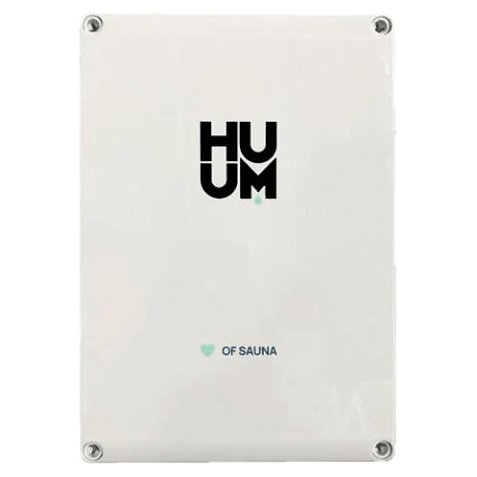

Extension Box

  • For use with UKU controls
  • For heaters over 11kW
  • Dimensions: 7"W (178mm) x 6"D (152mm)7"H (178mm)

Stones 24

  • 552 lbs of 2" - 4" (5-10 cm) round Olivine sauna stones

Specifications

Model HIVE 12STUX Pkg
Model HIVE 12
Kilowatt Rating 12KW
Minimum Cubic Feet 424 CF
Maximum Cubic Feet 883 CF
Heater Weight 44.1 lbs
Shipping Weight with Sauna Stones 596.1 lbs
240V, Single Phase Amperage 50 Amps
Circuit Breaker 30 + 30
Wire Size AWG 10 + 10
Diameter 22" (560mm)
Height 29.5" (750mm)
UKU
Minimum Temperature Setting 104 F
Maximum Temperature Setting 230 F
Shipping Weight 20 lbs
Console Dimensions
Width 2.2" (55mm)
Depth 0.9" (22mm)
Height 4.1" (105mm)
Main Module Dimensions
Width 3.5" (90mm)
Depth 2.3" (58mm)
Height 5.6" (142mm)
Display Panel Cable
Length 9.8 ft
AWG 22
Temp Sensor Cable
Length 16.4 ft
AWG 24
Door Sensor Cable
Length 16.4 ft
AWG 24



Accessories

HUUM HIVE Safety Rail

HUUM HIVE Reflect

HUUM HIVE Flange

Universal Sauna Light Kit with Two 10-Ft Flexible LED Strips

Universal Sauna Light Kit with 16-Ft Flexible LED Strip

Manuals, Warranties & Install Videos

HUUM HIVE Sauna Heater Installation Manual

HUUM HIVE Air Tunnel Installation Manual

HIVE Elements Required

HIVE Warranty

UKU Installation and Operation Manual

UKU Install Diagram

UKU Glass Mirror Install Diagram

UKU Installation Video

UKU Warranty

Stone Requirements
