Harvia WHP1500

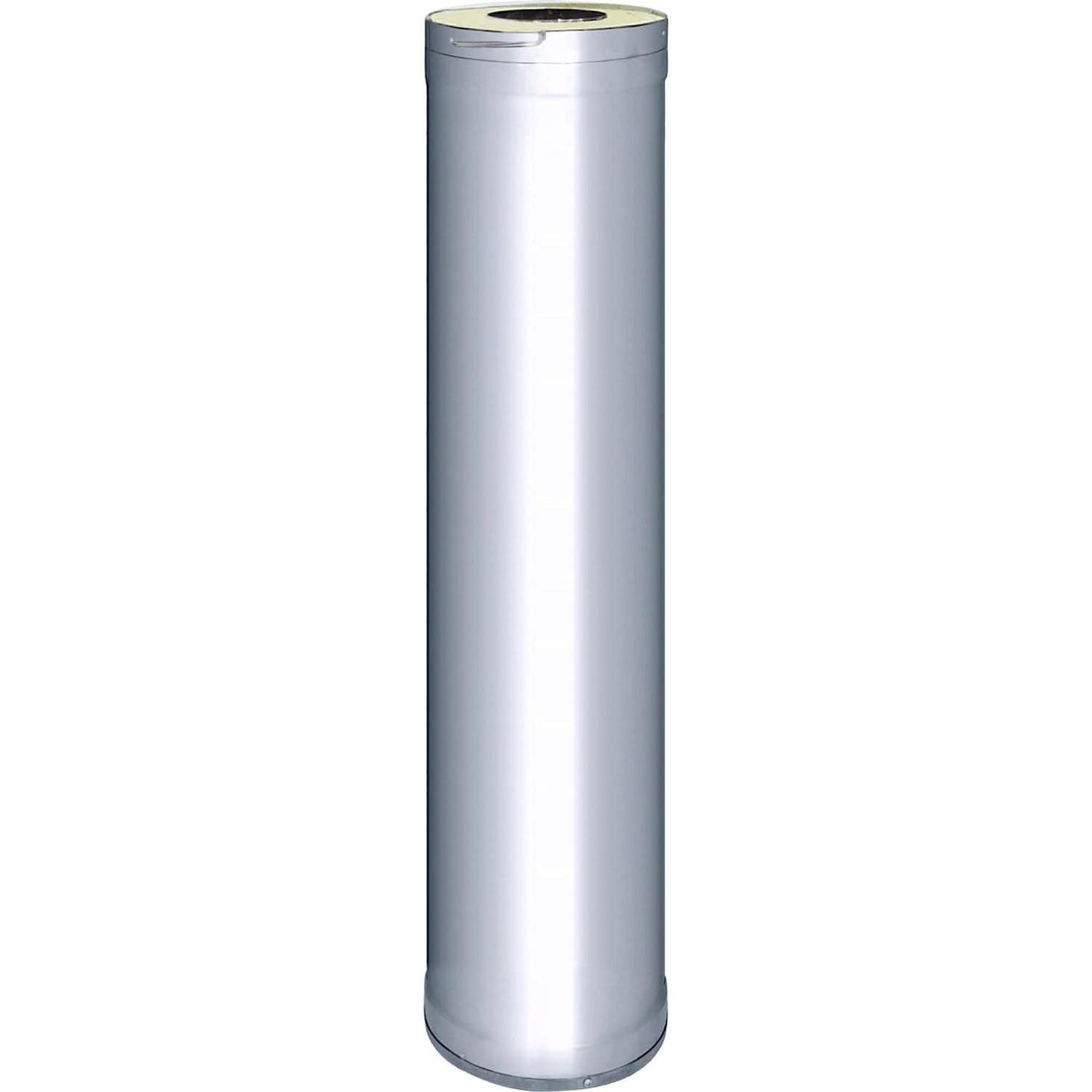

The Harvia stainless steel chimney is an easy-to-install stylish chimney solution. The steel chimney withstands extensive changes in temperature and has mainly been designed for use with woodburning stoves, smaller fireplaces, and iron stoves in detached sauna buildings.

The standard delivery of the steel chimney includes a steel chimney and a utility box with a rain cap, a rubber rain flange and an installation set for rain flange, a stainless steel lead-through flange for the ceiling, a lead-through insulation and protector. The package also includes a non-isolated smoke pipe. Supplementary parts are available as accessories for this stainless steel chimney. Thanks to an ingenious mechanism, the supplementary parts are wound together and the smoke pipes are also equipped with slots to lock them together. This prevents movement caused by temperature changes. Indoors, the chimney can be installed up to a height of 9' 8" without support and outdoors the corresponding self-supported installation height is 6' 6".

The rated maximum temperature of combus­tion gases for a furnace connected to a steel chimney is 600 ºC. The external diameter of the steel chimney is 8.66" and the diameter of the smoke pipe is 4.53". The safety distance to inflammable materials is 3.94". The Harvia steel chimney has a CE-marking, so the product complies with all international fire- and operational safety requirements. The steel chimney is sootfire proof.

Designed to be used with Slanted Roof

Features

• Stainless steel
• Includes utility box w/size opening templates
• CE marking
• Mineral wool insulation material
• Mounts in vertical position
• Works with wood-heated stoves
• Works with smaller fireplaces
• Works with iron-stoves
• Able to be easily extended
• Touch protection is not needed if installed in a sauna
• Sootfire resistant
• Freeze thaw resistant
• Designed, engineered, and made in Finland
• 2 year warranty

Includes

• Stainless steel chimney
• Utility box
• Non-insulated smoke pipe
• Rain cap
• Rubber rain flange
• Installation set for rain flange
• Stainless steel lead-through flange for ceiling
• Lead-through insulation and protector
• Installation manual
• 2 year warranty
