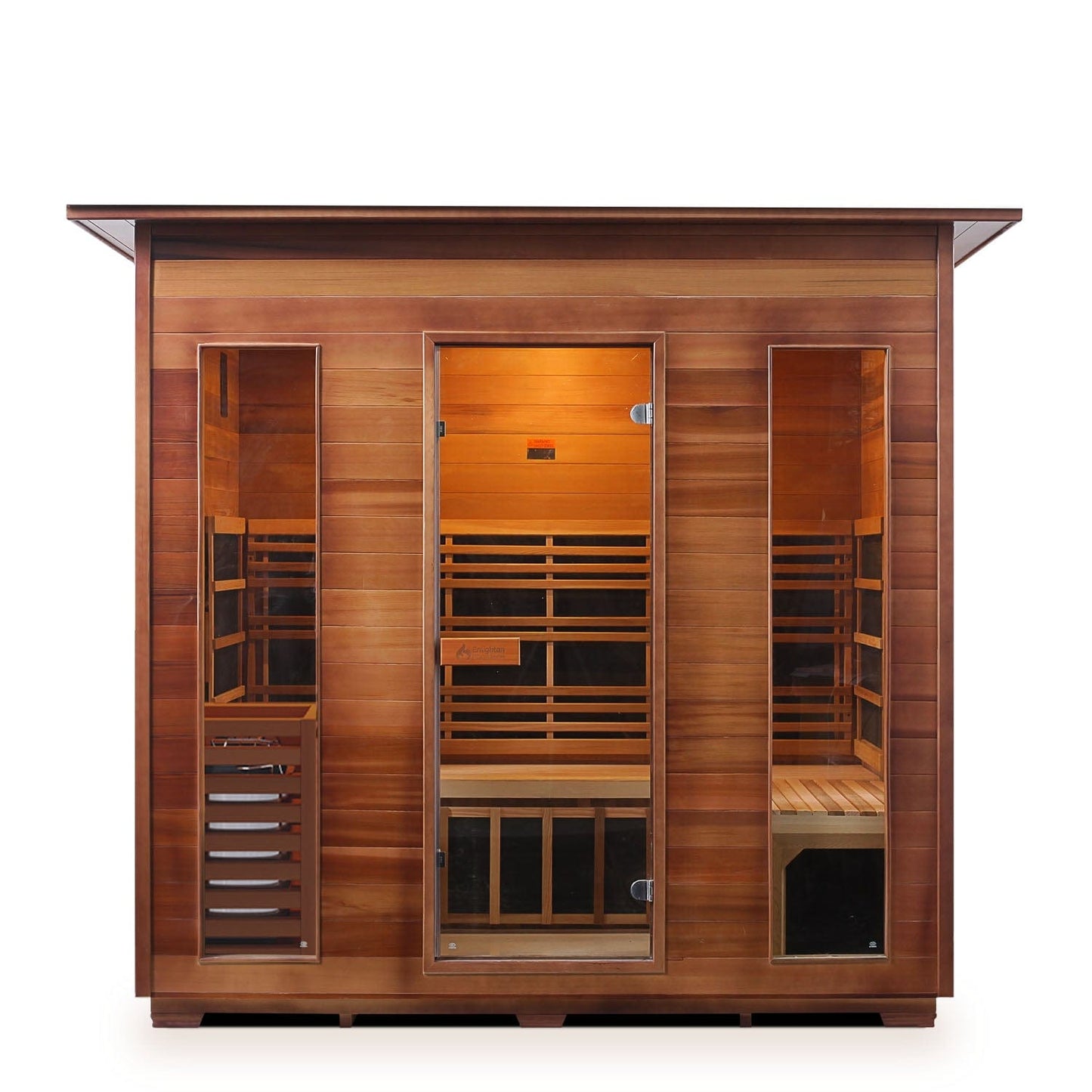

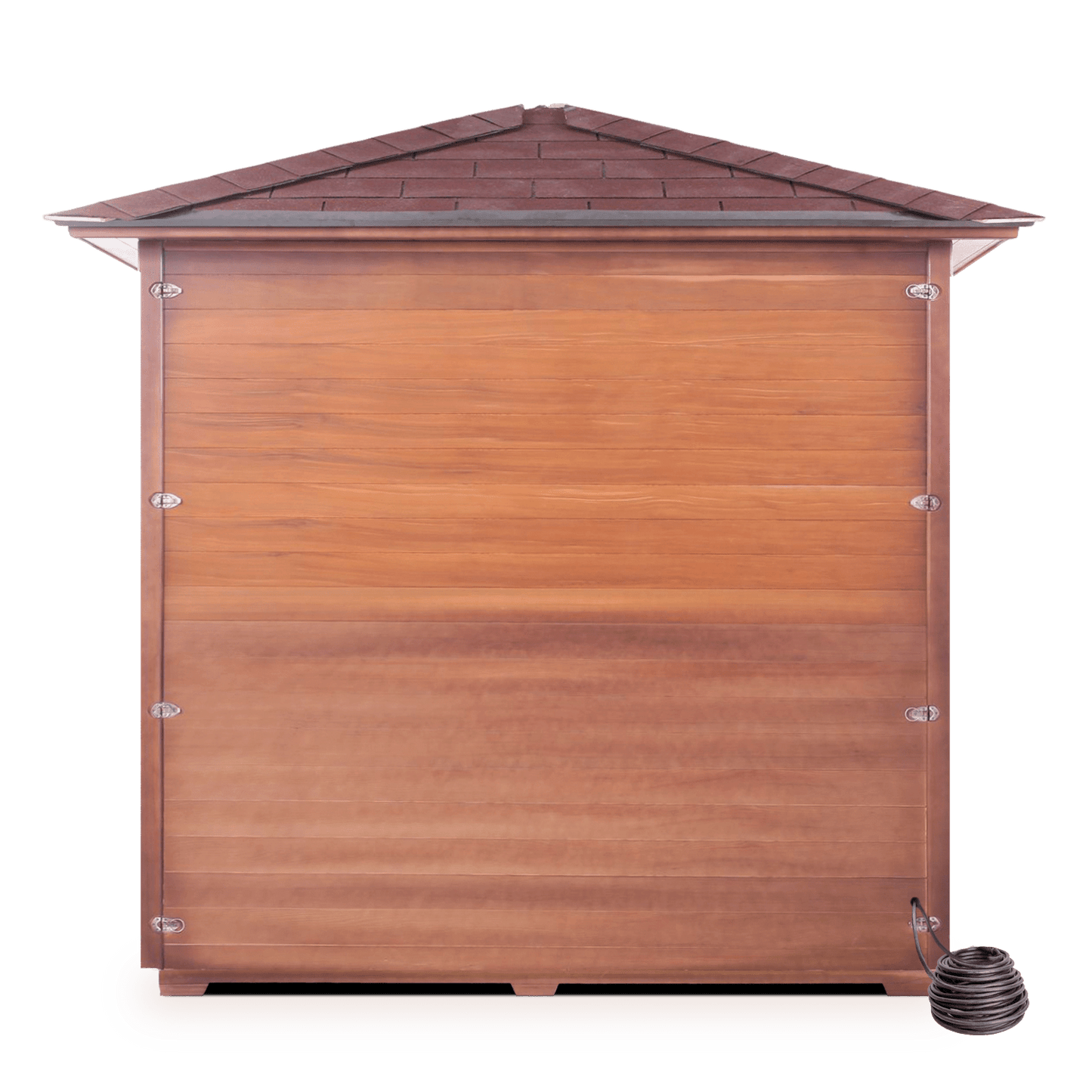

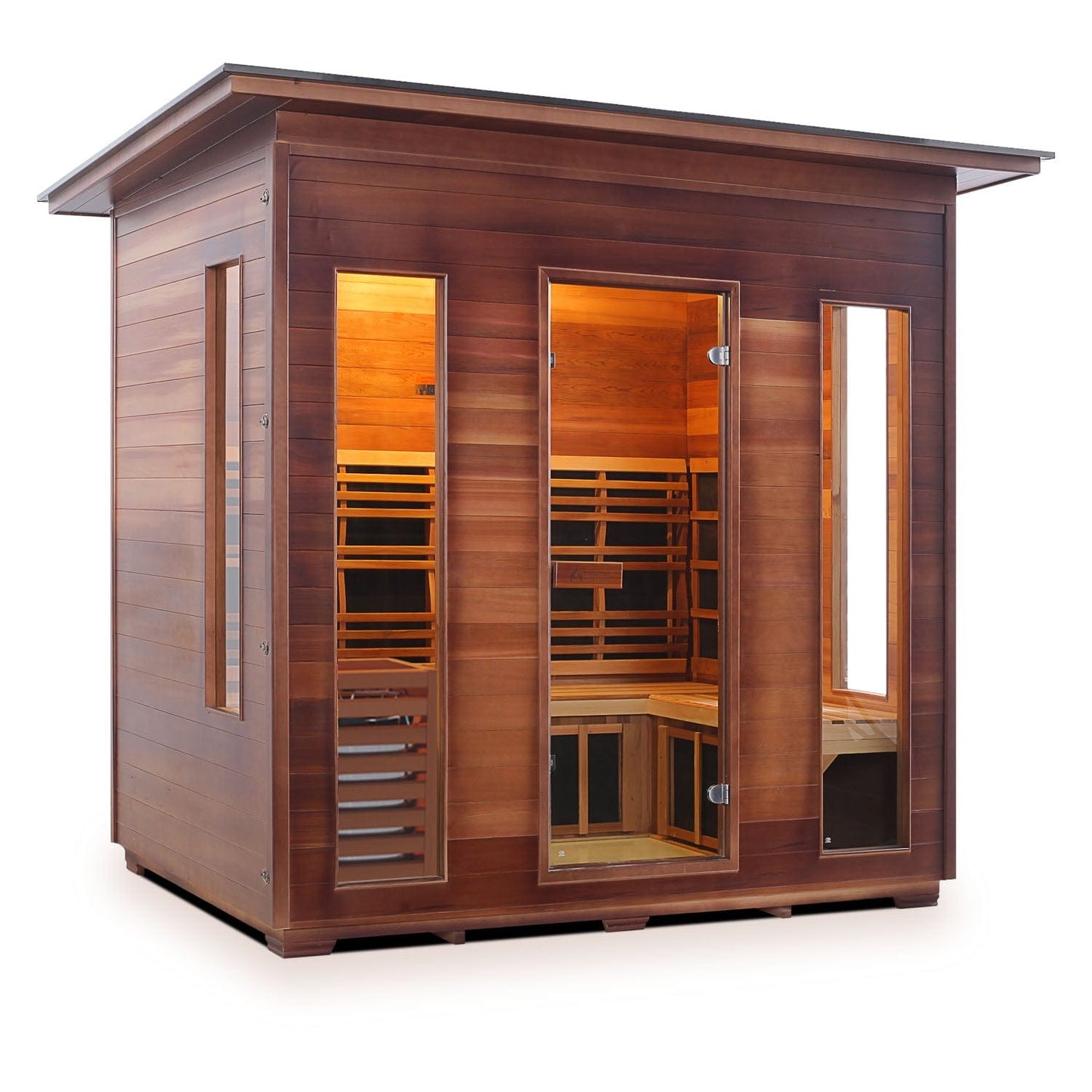

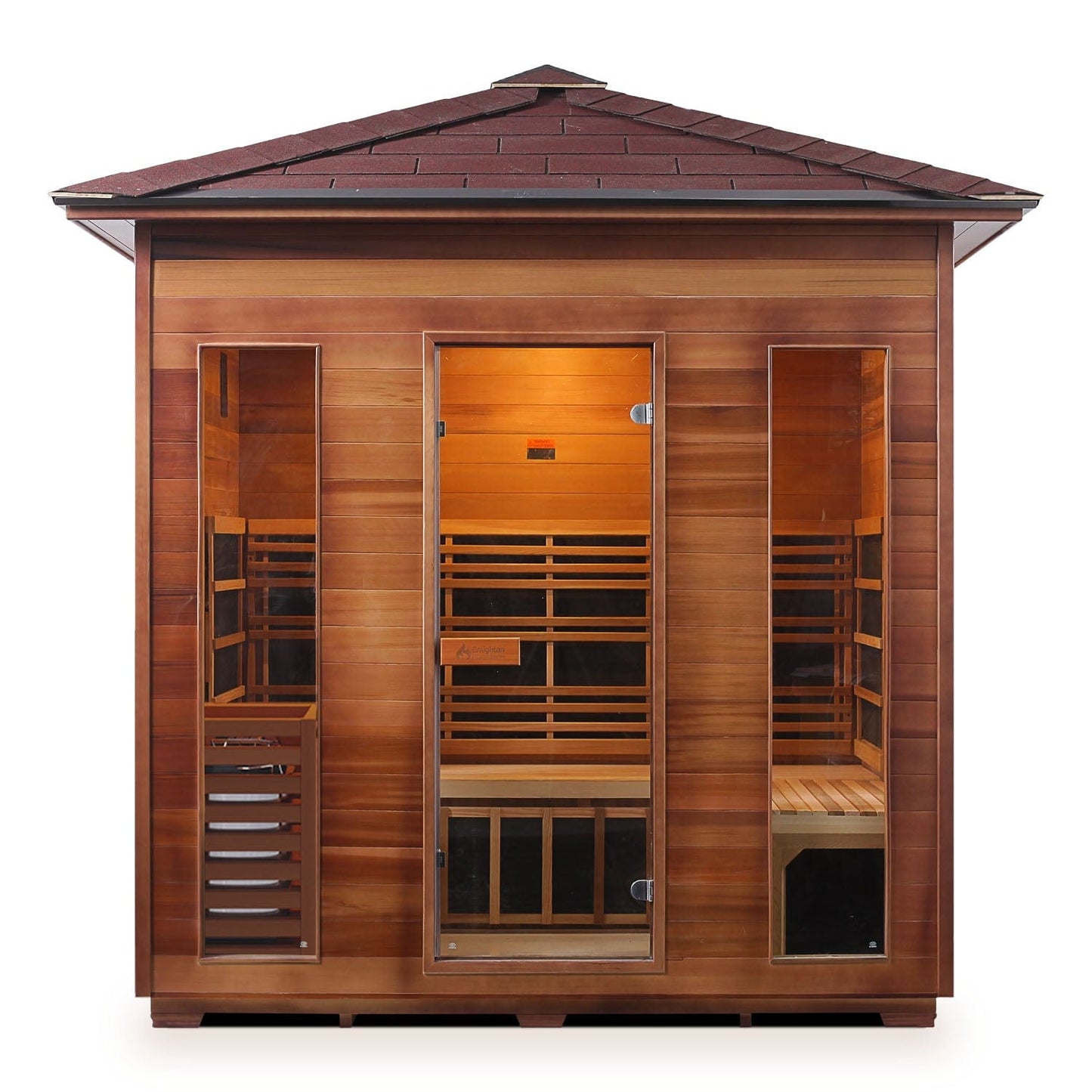

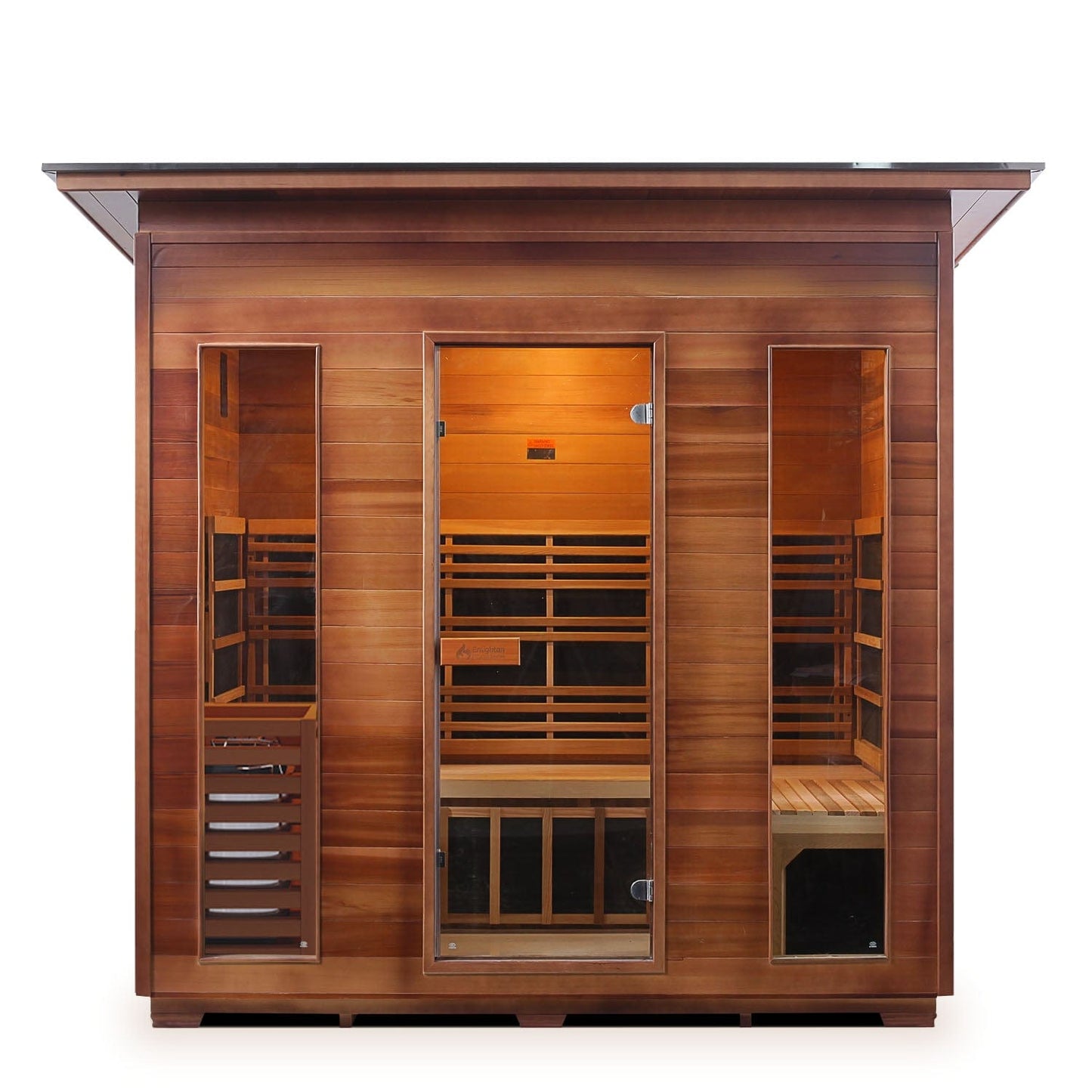

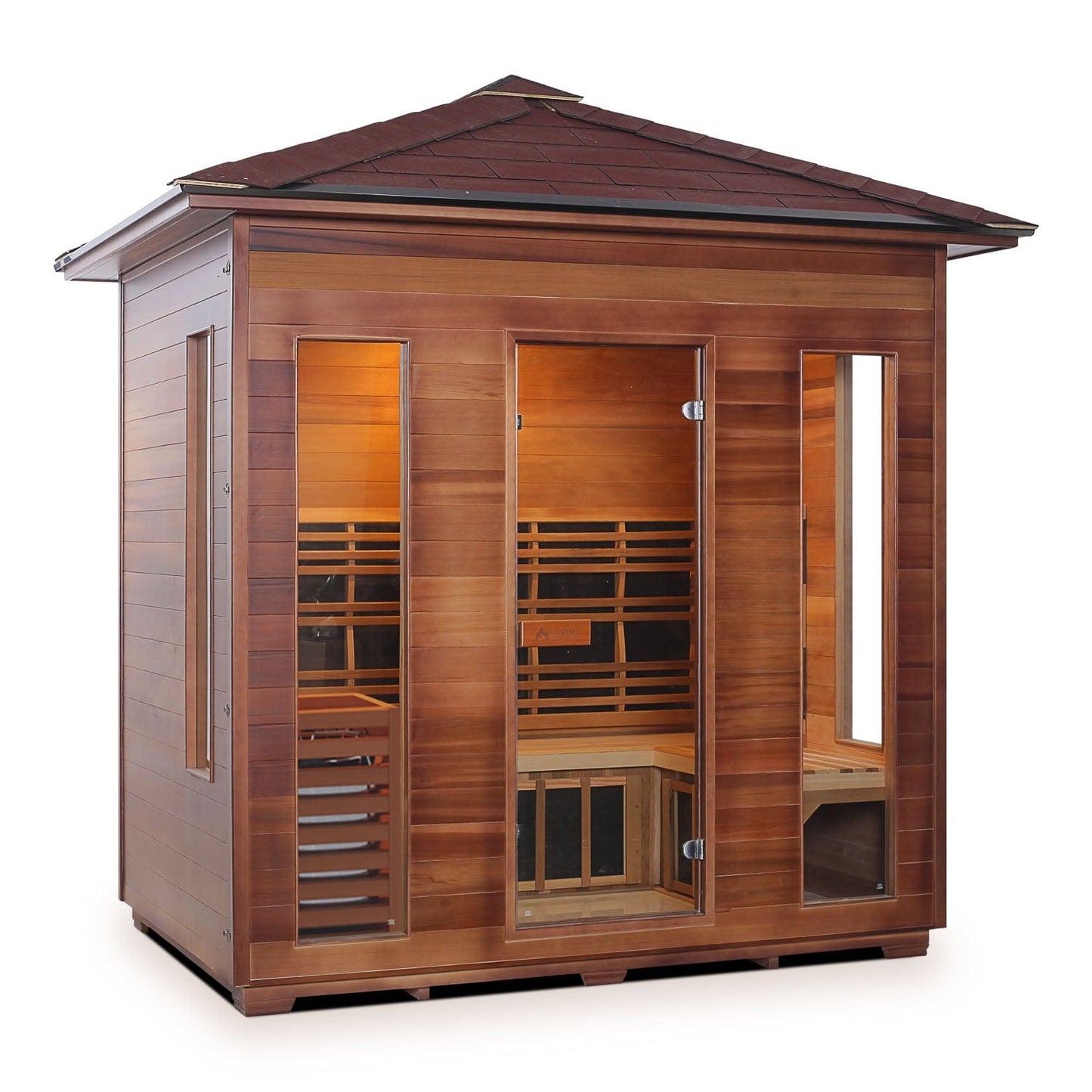

Our spacious hybrid Diamond sauna features Harvia electric and infrared heaters for simultaneous warmth. They offer renowned efficiency and sauna-specific features. Seating up to 4 people, it's ideal for relaxing or for use as an exercise space. The Diamond model makes use of glass panels to reap natural light and view the outdoors. As an outdoor unit, it's constructed of Canadian cedar wood, adding beauty and durability. Both sloped and peak roof variations are available to match any aesthetic, can also opt for an indoor unit.
- Double Roof ( Flat Roof + Outdoor Roof With Asphalt Shingles, Choose Peak Or Slope Design)
- Insulation
- Real Western Canadian Red Cedar Wood Outside And Inside
- Very Responsive Full Spectrum Heaters
- Harvia Heater
- Low EMF
- Eco-Certified
- Non-Toxic
- Bluetooth Player With Speakers FM/USB/AUX/MP3
Specifications
INTERIOR SPECIFICATION
Width: 77.5"
Depth: 57.5"
Height: 73"
Bench: 75.5" x 22"

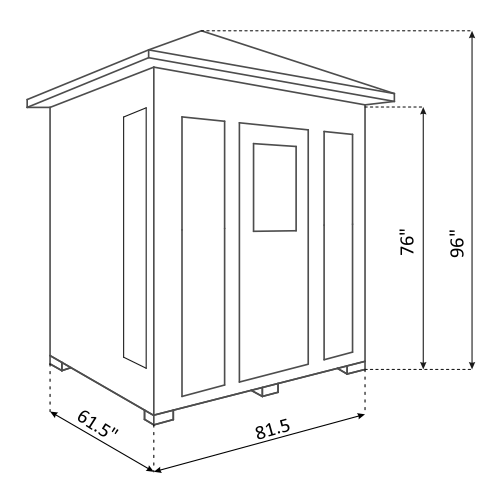

EXTERIOR SPECIFICATION
Width: 81.5"
Depth: 61.5"
Height: 96"
ROOF SPECIFICATION
Roof Width: 93.5"
Roof Depth: 73.5"
UNIT WEIGHT
Number of Boxes: 7
Product Weight: 1225 lbs
Shipping Weight: 1275 lbs
Features
Adjust. Temp.: 0-189 F

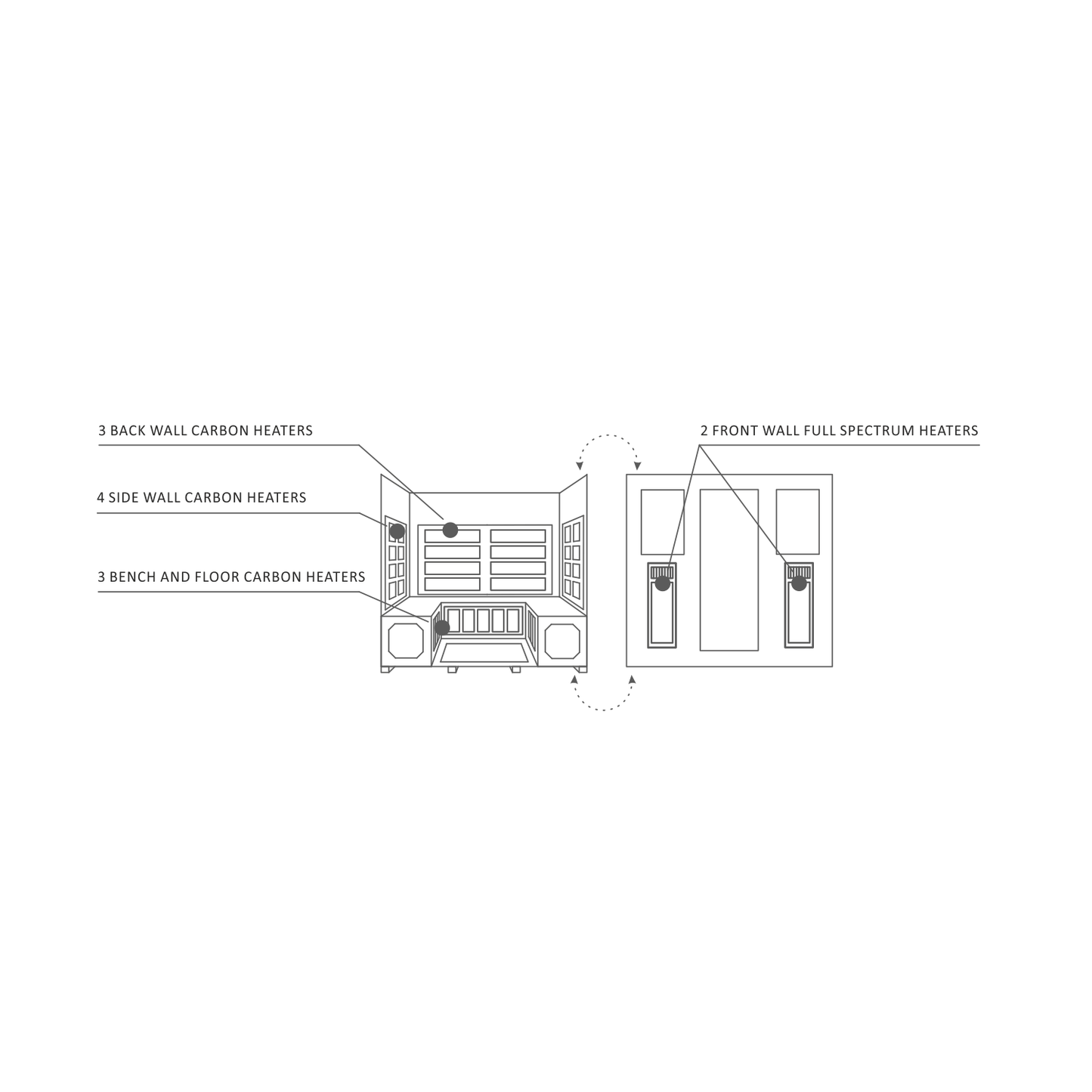

Heaters Number: 12 Heaters
Heaters Type: Electrical Heater + Infrared Heaters
Timer: 0 - 60 mins
Near/Mid IR Wavelength: 0 to 5 microns
Far IR Wavelength: 6 to 12 microns
Power
POWER USAGE/AMPS
2 separate designated circuits, 1 per each technology
Amperage: 20 Amp minimum, 30 amp recommended*
(Amperage per each heating system)
Infrared Plug: NEMA 6-20p
Traditional: Hardwire (recommended), plug sent separately if preferred
Voltage: 220/240 V
Infrared Wattage: 4000 W
Electrical Heater Wattage: 4500 W
Installation & Owner's Manual
Download Installation & Owner's Manual here
Full Spectrum Heater Installation Guide
